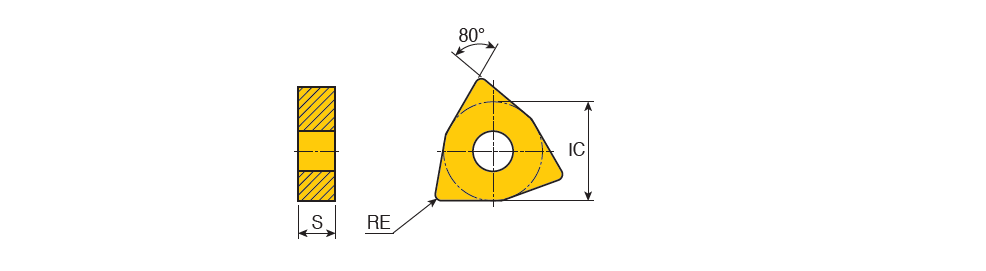

WNMG-MP : Negative 80° Trigon inserts for medium machining of steels & stainless steels

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 060408 MP	9.52	4.76	0.80	6.52~	MP ~	80~	0.00~	1.00	3.00	0.12	0.35	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT5080~	2~	ISO$WN0604082NB$$08 ~	332 MP ~	WNMG ~	Y ~	6 ~	5523068	5	TT8020 TT9235 TT9225 TT5100 TT5080
WNMG 060412 MP	9.52	4.76	1.20	6.52~	MP ~	80~	0.00~	1.30	3.00	0.15	0.40	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT5100~	2~	ISO$WN0604122NB$$12 ~	333 MP ~	WNMG ~	Y ~	6 ~	5514890	1	TT5100
WNMG 080404 MP	12.70	4.76	0.40	8.70~	MP ~	80~	0.00~	1.00	4.00	0.10	0.35	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8125B ~	2~	ISO$WN0804042NB$$04 ~	431 MP ~	WNMG ~	Y ~	8 ~	6240040	1	TT8125B
WNMG 080408 MP	12.70	4.76	0.80	8.70~	MP ~	80~	0.00~	1.00	4.00	0.12	0.40	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0804082NB$$08 ~	432 MP ~	WNMG ~	Y ~	8 ~	6240088	10	TT8020 TT9235 TT9080 TT9225 TT5100 TT8125B TT5080 TT9215 TT8115B TT7015
WNMG 080412 MP	12.70	4.76	1.20	8.70~	MP ~	80~	0.00~	1.30	4.00	0.15	0.40	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT5080~	2~	ISO$WN0804122NB$$12 ~	433 MP ~	WNMG ~	Y ~	8 ~	5523160	5	TT9235 TT9225 TT5100 TT5080 TT9215
