TaeguTec Cutting Tools - Metal Working Tools - Turning -

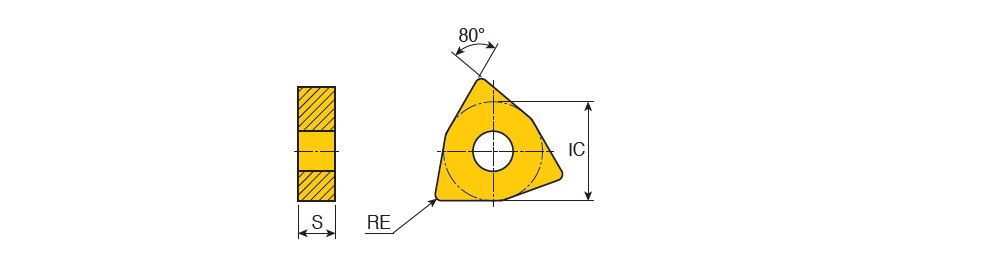

WNMG-WT : Negative 80° Trigon inserts for medium to rough machining of steel, cast iron & stainless steel with high feed rate due to wiper geometry of cutting edges

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 060408 WT	9.52	4.76	0.80	6.10~	WT ~	80~	0.00~	0.70	3.50	0.15	0.60	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8125B ~	2~	ISO$WN0604082NB$$08 ~	332 WT ~	WNMG ~	Y ~	~	6244478	3	TT5100 TT8125B TT7005
WNMG 060412 WT	9.52	4.76	1.20	6.52~	WT ~	80~	0.00~	0.70	3.50	0.20	0.80	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0604122NB$$12 ~	333 WT ~	WNMG ~	Y ~	6 ~	6212256	2	TT8115B TT7015
WNMG 080408 WT	12.70	4.76	0.80	8.70~	WT ~	80~	0.00~	1.00	4.00	0.15	0.60	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8125B ~	2~	ISO$WN0804082NB$$08 ~	432 WT ~	WNMG ~	Y ~	8 ~	6212565	4	TT5100 TT8125B TT7015 TT7005
WNMG 080412 WT	12.70	4.76	1.20	8.70~	WT ~	80~	0.00~	1.00	4.00	0.20	0.80	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0804122NB$$12 ~	433 WT ~	WNMG ~	Y ~	8 ~	6245768	6	TT8135B TT5100 TT8125B TT8115B TT7015 TT7005
