TaeguTec Cutting Tools - Metal Working Tools - Turning -

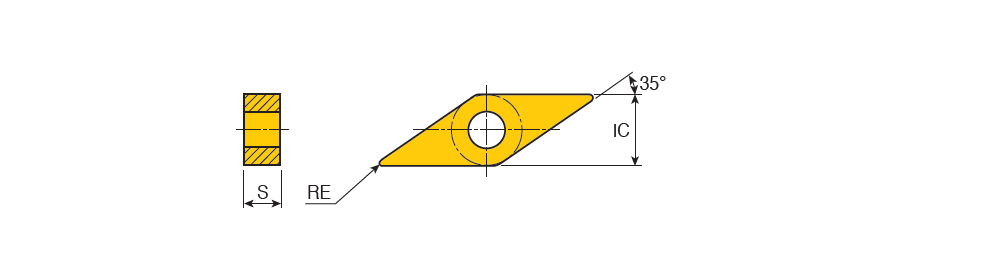

VNGG-ML : Negative ground 35° Rhombic inserts for machining of aluminum & exotic materials

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNGG 160401 ML	9.52	4.76	0.10	16.60~	ML ~	35~	0.00~	0.10	1.00	0.03	0.10	4~	P ~	~	V ~	71DD68D301C30 ~	PVD ~	K10 ~	2~	ISO$VN1604012NB$$01 ~	330 ML ~	VNGG ~	Y ~	16 ~	5523133	2	TT5080 K10
VNGG 160402 ML	9.52	4.76	0.20	16.60~	ML ~	35~	0.00~	0.20	1.20	0.05	0.15	4~	P ~	~	V ~	71DD68D301C30 ~	PVD ~	K10 ~	2~	ISO$VN1604022NB$$02 ~	330.5 ~	VNGG ~	Y ~	16 ~	5523134	2	TT5080 K10
VNGG 160404 ML	9.52	4.76	0.40	16.60~	ML ~	35~	0.00~	0.80	3.00	0.10	0.27	4~	P ~	~	V ~	71DD68D301C30 ~	CVD ~	K10 ~	2~	ISO$VN1604042NB$$04 ~	331 ML ~	VNGG ~	Y ~	16 ~	6189593	5	TT9080 TT9225 TT5100 TT5080 K10
VNGG 160408 ML	9.52	4.76	0.80	16.60~	ML ~	35~	0.00~	0.80	3.50	0.10	0.30	4~	P ~	~	V ~	71DD68D301C30 ~	CVD ~	K10 ~	2~	ISO$VN1604082NB$$08 ~	332 ML ~	VNGG ~	Y ~	16 ~	5580255	3	TT9225 TT5080 K10
