TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

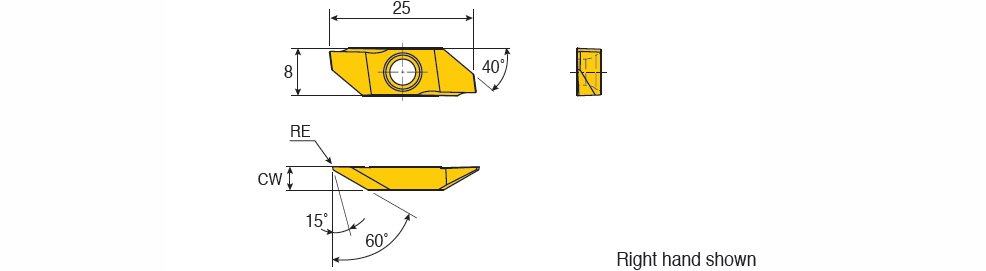

TVBR/L : Back turning for swiss automatics

Designation	CW	RE	CDX	S1	SC	R	ap (min)	ap (max)	ft (min)	ft (max)	CB1	HAND	ClssID	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	GIREM	giic	Grade & Vc Click on grade for cutting speed value
TVBL 40005	3.97	0.05	5.50	1.00~	L ~	0.020~	0.10	5.50	0.01	0.15	P6 ~	L ~	71DDA089C8D1E ~	2~	PVD ~	S ~	TT9010~	IS$$235677442248600 ~	6877302		1	TT9010
TVBR 40005-H	3.97	0.05	5.50	1.00~	L ~	0.020~	0.10	5.50	0.01	0.15	P6 ~	R ~	71DDA089C8D1E ~	2~	PVD ~	S ~	TT9010~	IS$$188542461848742 ~	6877352	With honed edges	1	TT9010
TVBL 40015-H	3.97	0.15	5.50	1.00~	L ~	0.020~	0.10	5.50	0.01	0.15	P6 ~	L ~	71DDA089C8D1E ~	2~	PVD ~	S ~	TT9010~	IS$$235677442248600 ~	6877365		1	TT9010
TVBR 40015	3.97	0.15	5.50	1.00~	L ~	0.020~	0.10	5.50	0.01	0.15	P6 ~	R ~	71DDA089C8D1E ~	2~	PVD ~	S ~	TT9010~	IS$$188542461848742 ~	6877314		1	TT9010
