TaeguTec Cutting Tools - Metal Working Tools - Turning -

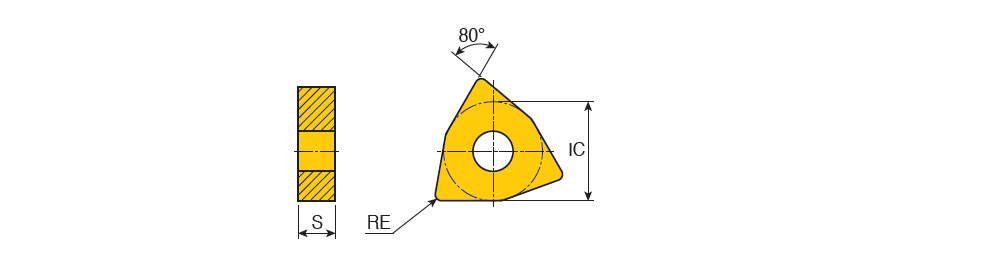

WNMG-WS : Negative 80° Trigon inserts for super finishing of steels, cast irons and stainless steels with wiper geometry & low cutting force & excellent chip control

Designation	l	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
WNMG 080408 WS	8.70~	12.70	4.76	0.80	WS ~	80~	0.00~	0.50	2.00	0.07	0.35	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0804082NB$$08 ~	432 WS ~	WNMG ~	Y ~	8 ~	6212281		1		TT8115B
