TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

BT-MT-DRW : DIN 6383 / DIN 228-2 form B draw bar Morse taper adapter with MAS-403 form A taper shanks

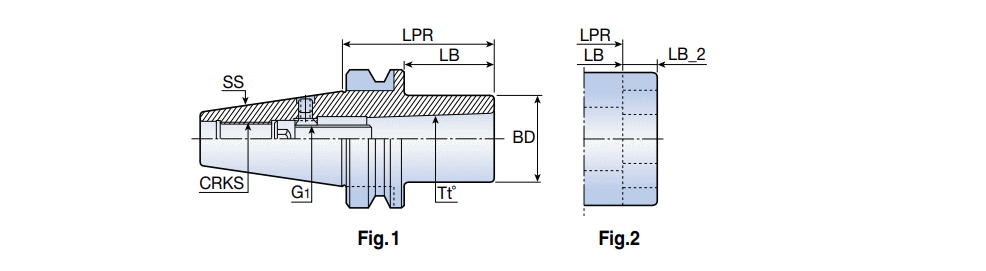

Designation	SS	Tt	BD	LPR	LB	LB_2	CRKS	G1		Fig	d2	ClssID	LTA	LS	GICAT	GIREM
BT40 MT1 DRW	40	MT1	25.00	50.00	23.0	-	M16	M6	1.10	1	0.00~	71EAD3871D313 ~	50.00~	65.4~	4601894
BT40 MT2 DRW	40	MT2	32.00	50.00	23.0	-	M16	M10	1.12	1	0.00~	71EAD3871D313 ~	50.00~	65.4~	4601895
BT40 MT3 DRW	40	MT3	40.00	70.00	43.0	-	M16	M12	1.27	1	0.00~	71EAD3871D313 ~	70.00~	65.4~	4601896
BT40 MT4 DRW	40	MT4	63.00	95.00	68.0	15.00	M16	M16	2.44	2	0.00~	71EAD3871D313 ~	95.00~	65.4~	4601897	DIN2201
BT50 MT1 DRW	50	MT1	25.00	45.00	7.0	-	M24	M6	3.80	1	0.00~	71EAD3871D313 ~	45.00~	101.8~	4601898
BT50 MT2 DRW	50	MT2	32.00	60.00	22.0	-	M24	M10	3.85	1	0.00~	71EAD3871D313 ~	60.00~	101.8~	4601899
BT50 MT3 DRW	50	MT3	40.00	65.00	27.0	-	M24	M12	3.67	1	0.00~	71EAD3871D313 ~	65.00~	101.8~	4601900
BT50 MT4 DRW	50	MT4	63.00	70.00	32.0	15.00	M24	M16	4.35	2	0.00~	71EAD3871D313 ~	70.00~	101.8~	4601901	DIN2201
BT50 MT5 DRW	50	MT5	78.00	100.00	62.0	18.00	M24	M20	5.15	2	0.00~	71EAD3871D313 ~	100.00~	101.8~	4601902	DIN2201
