TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TPM-M-PL09 : Plunging mills with T-FLEXTEC modular adaptation & 4 helical cutting edges of PLNG 09 inserts for plunging & facing

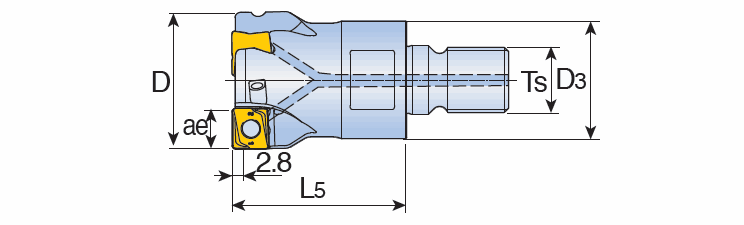

Designation	Tool sty	D	Z	D3	L5	Ts	ae	ap	S1		K	R/L	Rd	Arbor	PD	Insert	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	TQ_3	GICAT
TPM 225-M12-PL09	MODULAR ~	25.00	2	21.00	35.00	M12	9	2.80~	9.00~	0.11	90.0~	~	0.00~	~	C ~	C2P-PL09 ~	71E01A05D27A8 ~	PLNG 090408R-M	O ~	SAI ~	02 ~	IS$$202623133670716 ~	35.00~	0~	3111676
TPM 332-M16-PL09	MODULAR ~	32.00	3	29.00	43.00	M16	9	2.80~	9.00~	0.23	90.0~	~	0.00~	~	RC ~	C2P-PL09 ~	71E01A05D27A8 ~	PLNG 090408R-M	O ~	SAI ~	02 ~	IS$$202623133670716 ~	43.00~	0~	3111677
TPM 335-M16-PL09	MODULAR ~	35.00	3	29.00	43.00	M16	9	2.80~	9.00~	0.25	90.0~	~	0.00~	~	RC ~	C2P-PL09 ~	71E01A05D27A8 ~	PLNG 090408R-M	O ~	SAI ~	02 ~	IS$$202623133670716 ~	43.00~	0~	3112445
TPM 440-M16-PL09	MODULAR ~	40.00	4	29.00	43.00	M16	9	2.80~	9.00~	0.28	90.0~	~	0.00~	~	RF ~	C2P-PL09 ~	71E01A05D27A8 ~	PLNG 090408R-M	O ~	SAI ~	02 ~	IS$$202623133670716 ~	43.00~	0~	3112446
TPM 442-M16-PL09	MODULAR ~	42.00	4	29.00	43.00	M16	9	2.80~	9.00~	0.29	90.0~	~	0.00~	~	RF ~	C2P-PL09 ~	71E01A05D27A8 ~	PLNG 090408R-M	O ~	SAI ~	02 ~	IS$$202623133670716 ~	43.00~	0~	3112447
