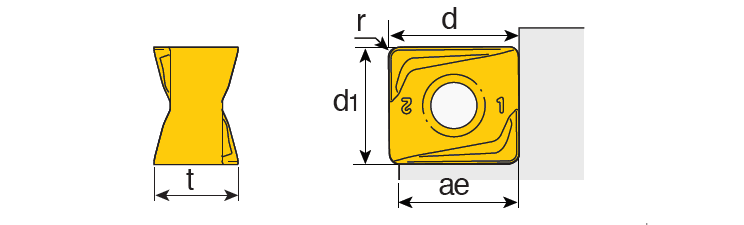

PLNG 090408R-ML : Double-sided plunging inserts with four helical cutting edges for difficult-to-cut materials

Designation	d	d1	t	r	ae	ap	S1	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CE	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
PLNG 090408R-ML	10.00	9.00	6.47	0.80	9	2.80~	9.00~	C2P-PL09 ~	0.50	2.00	0.200	0.100	M6 ~	L ~	71DD68D91938A ~	4~	U40 ~	ML ~	TT9080~	IS$$202623133670716 ~	PLNG 09 ~	0~	5616553		1		TT9080
