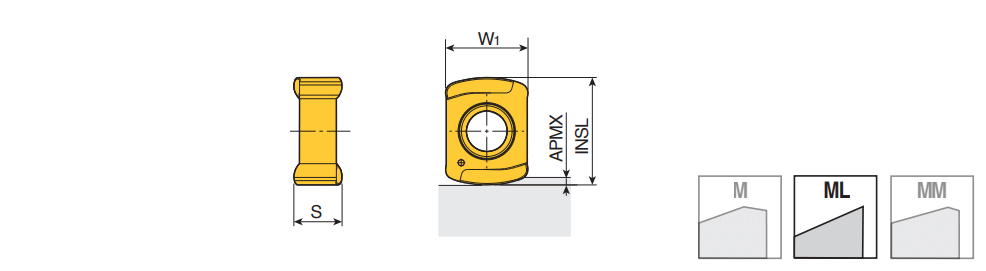

BLMP 09-ML : Unique double-sided inserts of 4 sharp cutting edges for high feed milling of exotic materials in max. ap 1.5 mm

TT3540&TT9540 : Available upon customer request.

Designation	INSL	W1	S	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	Rg		Pocket	ESP	ClssID	CB	GRDMFG	IIC	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
BLMP 0904R-ML	11.94	9.20	4.79	1.50	9.00~	0.10	1.50	1.000	0.300	M7.5 ~	C2F-BL09 ~	4~	B ~	2.5~	0.00~	BLMP 09 ~	U40 ~	71DDA089C8D1E ~	ML ~	TT3520~	IS$$599546141579126 ~	0~	6252112		7		TT8020 TT8080 TT3540 TT9540 TT3535 TT3520 TT9080
