TEBL-M-09 : High feed end mills with BLMP 09 inserts of 4 cutting edges and T-FLEXTEC modular adaptation in max. ap 1.5 mm

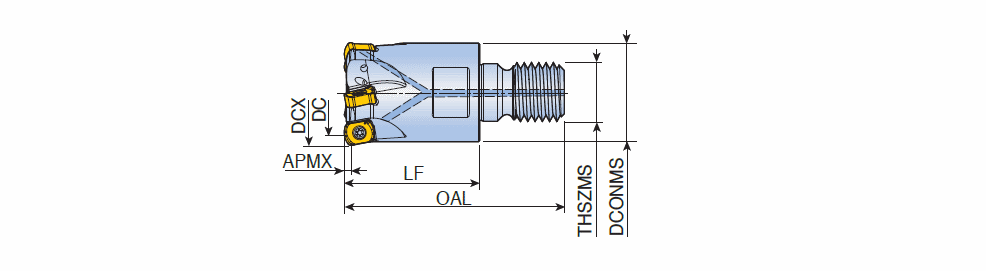

Designation	Tool sty	DC	DCX	CICT	DCONMS	LF	OAL	THSZMS	APMX	S1		HAND	KAPR	RMPX	Arbor	PD	Insert	ClssID	MIID		CCTMS	CCFMS	FF/RN	IIC	LTA	TQ_3	ZEFF	ZEFP	ZNP	GICAT
TEBL 225-M12-09	MODULAR ~	14.70	25.00	2	21.00	35.00	57.00	M12	1.50	9.00~	0.22	~	1.0~	2.20~	~	C ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	35.00~	0~	2~	2~	2~	3112890
TEBL 325-M12-09	MODULAR ~	14.70	25.00	3	21.00	35.00	57.00	M12	1.50	9.00~	0.10	~	1.0~	2.20~	~	RC ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	35.00~	0~	3~	3~	3~	3112891
TEBL 326-M12-09	MODULAR ~	15.70	26.00	3	21.00	35.00	57.00	M12	1.50	9.00~	0.10	~	1.0~	2.20~	~	RC ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	35.00~	0~	3~	3~	3~	3113001
TEBL 330-M16-09	MODULAR ~	19.60	30.00	3	29.00	43.00	68.00	M16	1.50	9.00~	0.21	~	1.0~	2.00~	~	RC ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	43.00~	0~	3~	3~	3~	3112892
TEBL 332-M16-09	MODULAR ~	21.60	32.00	3	29.00	43.00	68.00	M16	1.50	9.00~	0.22	~	1.0~	2.00~	~	RC ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	43.00~	0~	3~	3~	3~	3112893
TEBL 432-M16-09	MODULAR ~	21.60	32.00	4	29.00	43.00	68.00	M16	1.50	9.00~	0.22	~	1.0~	2.00~	~	RF ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	43.00~	0~	4~	4~	4~	3112894
TEBL 433-M16-09	MODULAR ~	22.60	33.00	4	29.00	43.00	68.00	M16	1.50	9.00~	0.23	~	1.0~	2.00~	~	RF ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	43.00~	0~	4~	4~	4~	3113002
TEBL 335-M16-09	MODULAR ~	24.60	35.00	3	29.00	43.00	68.00	M16	1.50	9.00~	0.24	~	1.0~	2.00~	~	RC ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	43.00~	0~	3~	3~	3~	6123938
TEBL 435-M16-09	MODULAR ~	24.60	35.00	4	29.00	43.00	68.00	M16	1.50	9.00~	0.24	~	1.0~	2.00~	~	RF ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	43.00~	0~	4~	4~	4~	6123937
TEBL 440-M16-09	MODULAR ~	29.60	40.00	4	29.00	43.00	68.00	M16	1.50	9.00~	0.26	~	1.0~	1.50~	~	RF ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	43.00~	0~	4~	4~	4~	3112895
TEBL 540-M16-09	MODULAR ~	29.60	40.00	5	29.00	43.00	68.00	M16	1.50	9.00~	0.28	~	1.0~	1.50~	~	F ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	43.00~	0~	5~	5~	5~	3112896
TEBL 542-M16-09	MODULAR ~	31.60	42.00	5	29.00	43.00	68.00	M16	1.50	9.00~	0.29	~	1.0~	1.50~	~	F ~	C2F-BL09 ~	71E01A05D27A8 ~	BLMP 0904R-M	O ~	SAI ~	02 ~	FF ~	IS$$599546141579126 ~	43.00~	0~	5~	5~	5~	3112897
