TaeguTec Cutting Tools - Metal Working Tools - Turning -

CKJNR/L : Top clamp holders with 93° approach angle for negative 55° Parallelogram inserts

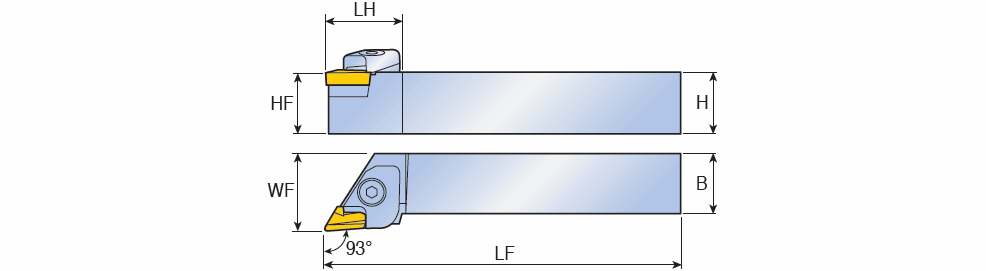

Right-hand shown

Designation	HF	H	B	LF	LH	WF	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT
CKJNL 2020 K16	20.0	20.0	20.0	125.00	35.0	25.00	9.52~	4.76~	30~	93.0~	Top Clamp ~	SQUARE ~	L ~	71E01A0E85121 ~	KNUX 160405 L11	IS$$103742067788683 ~	3600011
CKJNR 2020 K16	20.0	20.0	20.0	125.00	35.0	25.00	9.52~	4.76~	30~	93.0~	Top Clamp ~	SQUARE ~	R ~	71E01A0E85121 ~	KNUX 160405 R11	IS$$113577023388816 ~	3600012
CKJNR 2020 M16	20.0	20.0	20.0	150.00	35.0	25.00	9.52~	4.76~	30~	93.0~	Top Clamp ~	SQUARE ~	R ~	71E01A0E85121 ~	KNUX 160405 R11	IS$$113577023388816 ~	6341218
CKJNL 2525 M16	25.0	25.0	25.0	150.00	32.0	32.00	9.52~	4.76~	30~	93.0~	Top Clamp ~	SQUARE ~	L ~	71E01A0E85121 ~	KNUX 160405 L11	IS$$103742067788683 ~	3600310
CKJNR 2525 M16	25.0	25.0	25.0	150.00	32.0	32.00	9.52~	4.76~	30~	93.0~	Top Clamp ~	SQUARE ~	R ~	71E01A0E85121 ~	KNUX 160405 R11	IS$$113577023388816 ~	3600313
CKJNL 3225 P16	32.0	32.0	25.0	170.00	33.3	32.00	9.52~	4.76~	30~	93.0~	Top Clamp ~	SQUARE ~	L ~	71E01A0E85121 ~	KNUX 160405 L11	IS$$103742067788683 ~	3600603
CKJNL 3232 P16	32.0	32.0	32.0	170.00	33.3	40.00	9.52~	4.76~	30~	93.0~	Top Clamp ~	SQUARE ~	L ~	71E01A0E85121 ~	KNUX 160405 L11	IS$$103742067788683 ~	3600776
CKJNR 3232 M16	32.0	32.0	32.0	150.00	33.3	40.00	9.52~	4.76~	30~	93.0~	Top Clamp ~	SQUARE ~	R ~	71E01A0E85121 ~	KNUX 160405 R11	IS$$113577023388816 ~	3600779
CKJNR 3232 P16	32.0	32.0	32.0	170.00	33.3	40.00	9.52~	4.76~	30~	93.0~	Top Clamp ~	SQUARE ~	R ~	71E01A0E85121 ~	KNUX 160405 R11	IS$$113577023388816 ~	3600780
CKJNL 4040 R16	40.0	40.0	40.0	200.00	33.3	50.00	9.52~	4.76~	30~	93.0~	Top Clamp ~	SQUARE ~	L ~	71E01A0E85121 ~	KNUX 160405 L11	IS$$103742067788683 ~	3600777
CKJNR 4040 R16	40.0	40.0	40.0	200.00	33.3	50.00	9.52~	4.76~	30~	93.0~	Top Clamp ~	SQUARE ~	R ~	71E01A0E85121 ~	KNUX 160405 R11	IS$$113577023388816 ~	3600782
