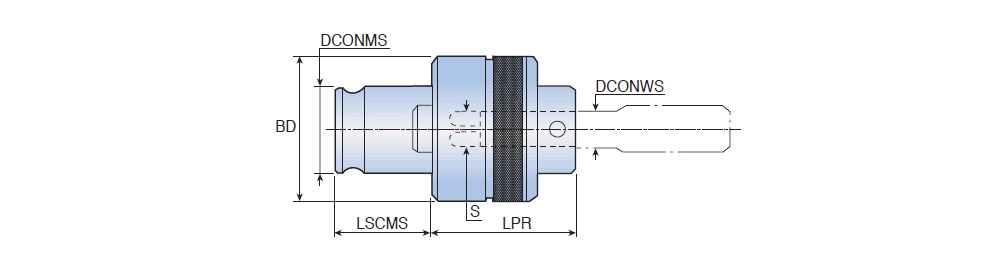

TA-M : Tap adapters for tapping holders with tension & compression floating mechanism and JIS taps

Designation	DCONMS	DCONWS	BD	LPR	LSCMS	S	ClssID	LTA	GICAT
TA 1-M3	19.00	4.00	32.00	25.0	21.50	3.20	71EAD3871D313 ~	25.00~	4655341
TA 1-M4	19.00	5.00	32.00	25.0	21.50	4.00	71EAD3871D313 ~	25.00~	4655342
TA 1-M5	19.00	5.50	32.00	25.0	21.50	4.50	71EAD3871D313 ~	25.00~	4655343
TA 1-M6	19.00	6.00	32.00	25.0	21.50	4.50	71EAD3871D313 ~	25.00~	4655344
TA 1-M8	19.00	6.20	32.00	25.0	21.50	5.00	71EAD3871D313 ~	25.00~	4655345
TA 1-M10	19.00	7.00	32.00	25.0	21.50	5.50	71EAD3871D313 ~	25.00~	4655339
TA 1-M12	19.00	8.50	32.00	25.0	21.50	6.50	71EAD3871D313 ~	25.00~	4655340
TA 2-M6	31.00	6.00	50.00	33.0	35.50	4.50	71EAD3871D313 ~	33.00~	4655354
TA 2-M8	31.00	6.20	50.00	33.0	35.50	5.00	71EAD3871D313 ~	33.00~	4655355
TA 2-M10	31.00	7.00	50.00	33.0	35.50	5.50	71EAD3871D313 ~	33.00~	4655346
TA 2-M12	31.00	8.50	50.00	33.0	35.50	6.50	71EAD3871D313 ~	33.00~	4655347
TA 2-M14	31.00	10.50	50.00	33.0	35.50	8.00	71EAD3871D313 ~	33.00~	4655348
TA 2-M16	31.00	12.50	50.00	33.0	35.50	10.00	71EAD3871D313 ~	33.00~	4655349
TA 2-M18	31.00	14.00	50.00	33.0	35.50	11.00	71EAD3871D313 ~	33.00~	4655350
TA 2-M20	31.00	15.00	50.00	33.0	35.50	12.00	71EAD3871D313 ~	33.00~	4655351
TA 2-M22	31.00	17.00	50.00	33.0	35.50	13.00	71EAD3871D313 ~	33.00~	4655352
TA 2-M24	31.00	19.00	50.00	33.0	35.50	15.00	71EAD3871D313 ~	33.00~	4655353
TA 3-M18	48.00	14.00	72.00	45.0	55.50	11.00	71EAD3871D313 ~	45.00~	4655356
TA 3-M20	48.00	15.00	72.00	45.0	55.50	12.00	71EAD3871D313 ~	45.00~	4655357
TA 3-M22	48.00	17.00	72.00	45.0	55.50	13.00	71EAD3871D313 ~	45.00~	4655358
TA 3-M24	48.00	19.00	72.00	45.0	55.50	15.00	71EAD3871D313 ~	45.00~	4655359
TA 3-M27	48.00	20.00	72.00	45.0	55.50	17.00	71EAD3871D313 ~	45.00~	4655360
TA 3-M30	48.00	23.00	72.00	45.0	55.50	19.00	71EAD3871D313 ~	45.00~	4655361
TA 3-M33	48.00	25.00	72.00	45.0	55.50	19.00	71EAD3871D313 ~	45.00~	4655362
TA 3-M36	48.00	28.00	72.00	45.0	55.50	21.00	71EAD3871D313 ~	45.00~	4655363
TA 3-M38	48.00	28.00	72.00	45.0	55.50	21.00	71EAD3871D313 ~	45.00~	4655364

Based on JIS standard tap
