TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

DIN69871-MT-DRW : DIN 6383 / DIN 228-2 form B draw bar Morse taper adapter with DIN 69871 form A taper shanks

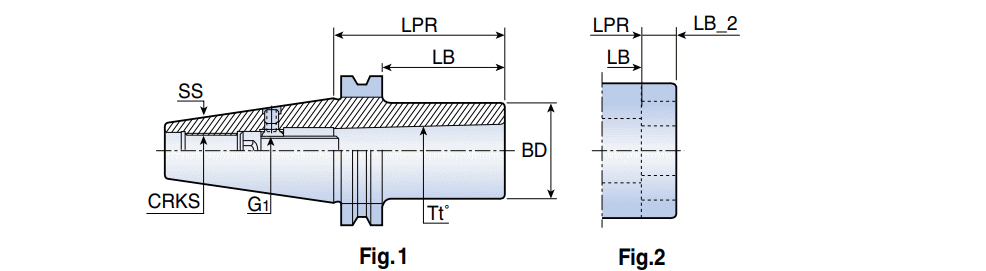

Designation	SS	Tt	BD	LPR	LB	LB_2	CRKS	G1		Fig	d2	ClssID	LTA	LS	GICAT	GIREM
DIN69871 40 MT1 DRW	40	MT1	25.00	50.00	30.9	-	M16	M6	0.90	1	0.00~	71EAD3871D313 ~	50.00~	68.4~	4601852
DIN69871 40 MT2 DRW	40	MT2	32.00	50.00	30.9	-	M16	M10	0.92	1	0.00~	71EAD3871D313 ~	50.00~	0.0~	4601853
DIN69871 40 MT3 DRW	40	MT3	40.00	70.00	50.9	-	M16	M12	1.05	1	0.00~	71EAD3871D313 ~	70.00~	68.4~	4601854
DIN69871 40 MT4 DRW	40	MT4	63.00	110.00	90.9	15.00	M16	M16	2.10	2	0.00~	71EAD3871D313 ~	95.00~	68.4~	4601855	DIN2201
DIN69871 50 MT1 DRW	50	MT1	25.00	45.00	25.9	-	M24	M6	2.67	1	0.00~	71EAD3871D313 ~	45.00~	101.8~	4601856
DIN69871 50 MT2 DRW	50	MT2	32.00	60.00	40.9	-	M24	M10	2.75	1	0.00~	71EAD3871D313 ~	60.00~	101.8~	4601857
DIN69871 50 MT3 DRW	50	MT3	40.00	65.00	45.9	-	M24	M12	2.83	1	0.00~	71EAD3871D313 ~	65.00~	101.8~	4601858
DIN69871 50 MT4 DRW	50	MT4	63.00	85.00	65.9	15.00	M24	M16	3.57	2	0.00~	71EAD3871D313 ~	70.00~	101.8~	4601859	DIN2201
DIN69871 50 MT5 DRW	50	MT5	78.00	118.00	98.9	18.00	M24	M20	4.49	2	0.00~	71EAD3871D313 ~	110.00~	101.8~	4601860	DIN2201
