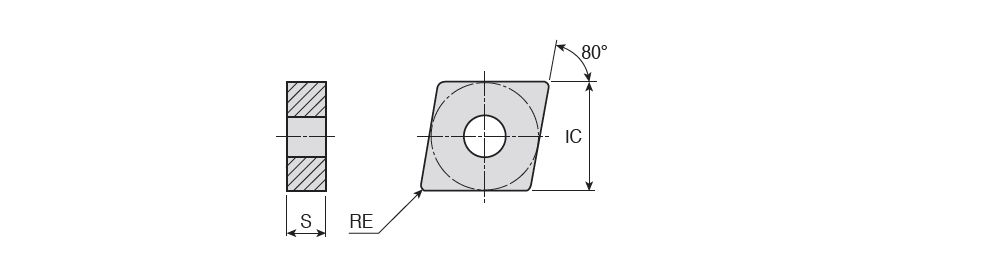

CNGA-CERAMIC : Negative 80° Rhombic ground Ceramic inserts with hole for cast iron and hardened steel machining

Designation	IC	S	RE	D1	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNGA 120404	12.70	4.76	0.40	5.16~	80~	0.00~	0.10	3.00	0.05	0.15	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$CN1204042NA$$04 ~	431 ~	CNGA ~	Y ~	12 ~	5702676	3	AB30 AB20 AB2010
CNGA 120404 T2	12.70	4.76	0.40	5.16~	80~	0.00~	0.10	3.00	0.05	0.15	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AB30 ~	2~	ISO$CN1204042NA$$04 ~	431 T2 ~	CNGA ~	Y ~	12 ~	5700295	1	AB30
CNGA 120408	12.70	4.76	0.80	5.16~	80~	0.00~	0.10	3.00	0.05	0.20	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$CN1204082NA$$08 ~	432 ~	CNGA ~	Y ~	12 ~	6342627	6	AS10 SC10 AS500 AB30 AB20 AB2010
CNGA 120408 E	12.70	4.76	0.80	5.16~	80~	0.00~	0.10	3.00	0.05	0.20	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	TC3020~	2~	ISO$CN1204082NA$$08 ~	432 E ~	CNGA ~	Y ~	12 ~	6168770	2	TC3030 TC3020
CNGA 120408 T2	12.70	4.76	0.80	5.16~	80~	0.00~	0.10	3.00	0.05	0.20	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$CN1204082NA$$08 ~	432 T2 ~	CNGA ~	Y ~	12 ~	5700300	2	AB30 AB20
CNGA 120408 T6	12.70	4.76	0.80	5.16~	80~	0.00~	0.10	3.00	0.05	0.20	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$CN1204082NA$$08 ~	120408 ~	CNGA ~	Y ~	12 ~	6168768	4	TC3030 TC3020 TC430 AB20
CNGA 120408 T6-WZ	12.70	4.76	0.80	5.16~	80~	0.00~	0.10	3.00	0.05	0.20	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$CN1204082NA$$08 ~	432 T6 ~	CNGA ~	Y ~	12 ~	5702541	1	AS10
CNGA 120408 T7	12.70	4.76	0.80	5.16~	80~	0.00~	0.10	3.00	0.05	0.20	4~	~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AS500 ~	2~	ISO$CN1204082NA$$08 ~	432 T7 ~	CNGA ~	Y ~	12 ~	5703580	2	AS500 AW120
CNGA 120408 T7-WZ	12.70	4.76	0.80	5.16~	80~	0.00~	0.10	3.00	0.05	0.20	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$CN1204082NA$$08 ~	432 T7 ~	CNGA ~	Y ~	12 ~	5702513	1	AB20
CNGA 120412	12.70	4.76	1.20	5.16~	80~	0.00~	0.10	3.00	0.05	0.25	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$CN1204122NA$$12 ~	433 ~	CNGA ~	Y ~	12 ~	6318781	5	AS10 SC10 AB30 AB20 AB2010
CNGA 120412 T6-WZ	12.70	4.76	1.20	5.16~	80~	0.00~	0.10	3.00	0.05	0.25	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic+CVD ~	SC10 ~	2~	ISO$CN1204122NA$$12 ~	433 T6 ~	CNGA ~	Y ~	12 ~	5702633	1	SC10
CNGA 120412 T7	12.70	4.76	1.20	5.16~	80~	0.00~	0.10	3.00	0.05	0.25	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AS500 ~	2~	ISO$CN1204122NA$$12 ~	433 T7 ~	CNGA ~	Y ~	12 ~	5703241	1	AS500
CNGA 120412 T7-WZ	12.70	4.76	1.20	5.16~	80~	0.00~	0.10	3.00	0.05	0.25	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$CN1204122NA$$12 ~	433 T7 ~	CNGA ~	Y ~	12 ~	5702514	1	AB20
CNGA 120416	12.70	4.76	1.60	5.16~	80~	0.00~	0.10	3.00	0.05	0.30	4~	P ~	~	12.90~	C ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$CN1204162NA$$16 ~	434 ~	CNGA ~	Y ~	12 ~	5701367	4	AS10 SC10 AB30 AB20
CNGA 160608	15.88	6.35	0.80	6.35~	80~	0.00~	0.10	3.50	0.05	0.20	4~	P ~	~	15.87~	C ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$CN1606082NA$$08 ~	542 ~	CNGA ~	Y ~	16 ~	5700022	1	AB20
CNGA 160612	15.88	6.35	1.20	6.35~	80~	0.00~	0.10	3.50	0.05	0.25	4~	P ~	~	15.87~	C ~	71DD68D301C30 ~	Ceramic ~	AB30 ~	2~	ISO$CN1606122NA$$12 ~	543 ~	CNGA ~	Y ~	16 ~	5702968	1	AB30
CNGA 160616	15.88	6.35	1.60	6.35~	80~	0.00~	0.10	3.50	0.05	0.30	4~	P ~	~	15.87~	C ~	71DD68D301C30 ~	Ceramic ~	AB30 ~	2~	ISO$CN1606162NA$$16 ~	544 ~	CNGA ~	Y ~	16 ~	5700315	1	AB30
CNGA 190608	19.05	6.35	0.80	7.92~	80~	0.00~	0.10	4.50	0.05	0.20	4~	P ~	~	19.03~	C ~	71DD68D301C30 ~	Ceramic ~	AB30 ~	2~	ISO$CN1906082NA$$08 ~	642 ~	CNGA ~	Y ~	19 ~	5700317	1	AB30
CNGA 190612	19.05	6.35	1.20	7.92~	80~	0.00~	0.10	4.50	0.05	0.25	4~	P ~	~	19.03~	C ~	71DD68D301C30 ~	Ceramic ~	AB30 ~	2~	ISO$CN1906122NA$$12 ~	643 ~	CNGA ~	Y ~	19 ~	5700318	1	AB30

E : Honing without T-land , WZ : Wiper geometry
T2: Land 0.10 x 30° / T6: Land 0.10 x 20°
T7: Land 0.2x20°, no honing
