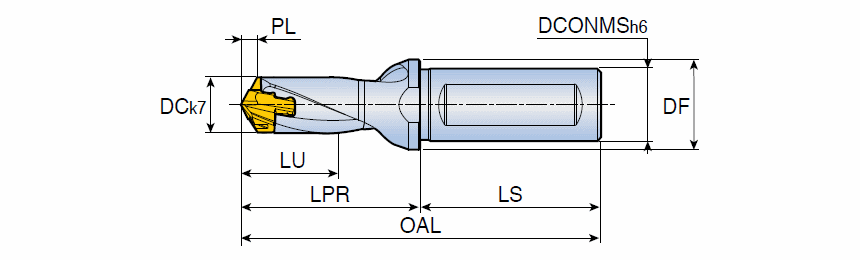

TCD-1.5XD (Weldon Shank) : Head changeable drills with Weldon shank (1.5xD) and coolant holes

Drilling depth: 1.5xdiameter

Designation	Tool sty	DCN	DCX	DCONMS	DF	LU	L1	LPR	LS	OAL	PL	SSC		Machines	Zeff	Min Tol	Max Tol	Shank	ClssID	MIID	CICT	DC	ULDR	CCFMS	CCTMS	IIC	IIC_2	IIC_3	IIC_4	IIC_5	LTA	GICAT
TCD 060-064-12T3-1.5D	HEAD TYPE ~	6.00	6.40	12.00	16.00	10.0	9.0~	23.0	45.0	68.00	0.96	6	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-060-P	1~	6.00~	1.50~	11 ~	ZYL ~	IS$$452996933712648 ~	~	~	~	~	22.04~	6132153
TCD 065-069-12T3-1.5D	HEAD TYPE ~	6.50	6.90	12.00	16.00	11.0	10.0~	24.1	45.0	69.10	1.18	6.5	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-065-P	1~	6.50~	1.50~	11 ~	ZYL ~	IS$$414828823449393 ~	~	~	~	~	22.92~	6132161
TCD 070-074-12T3-1.5D	HEAD TYPE ~	7.00	7.40	12.00	16.00	12.0	11.0~	25.1	45.0	70.10	1.01	7	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-070-P	1~	7.00~	1.50~	11 ~	ZYL ~	IS$$217942683788011 ~	~	~	~	~	24.09~	3204409
TCD 075-079-12T3-1.5D	HEAD TYPE ~	7.50	7.90	12.00	16.00	12.0	11.3~	25.9	45.0	70.90	1.10	7	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-075-P	1~	7.50~	1.50~	11 ~	ZYL ~	IS$$157885993804540 ~	~	~	~	~	24.80~	3204533
TCD 080-089-12T3-1.5D	HEAD TYPE ~	8.00	8.90	12.00	16.00	13.0	12.0~	27.4	45.0	72.40	1.20	8	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-080-P	1~	8.00~	1.50~	11 ~	ZYL ~	IS$$122008454425676 ~	IS$$132276582499964 ~	IS$$202087646801964 ~	~	~	26.20~	3204410
TCD 090-099-12T3-1.5D	HEAD TYPE ~	9.00	9.90	12.00	16.00	15.0	14.0~	29.3	45.0	74.30	1.35	9	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-090-P	1~	9.00~	1.50~	11 ~	ZYL ~	IS$$122003644051024 ~	IS$$182057656855713 ~	~	~	~	27.95~	3204411
TCD 100-109-16T3-1.5D	HEAD TYPE ~	10.00	10.90	16.00	20.00	17.0	15.0~	31.2	48.0	79.20	1.50	10	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-100-P	1~	10.00~	1.50~	11 ~	ZYL ~	IS$$112375841840570 ~	IS$$152125586559650 ~	IS$$172134102160560 ~	IS$$182398426472920 ~	~	29.70~	3204080
TCD 110-119-16T3-1.5D	HEAD TYPE ~	11.00	11.90	16.00	20.00	19.0	17.0~	33.1	48.0	81.10	1.67	11	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-110-P	1~	11.00~	1.50~	11 ~	ZYL ~	IS$$112376014506660 ~	IS$$152125774110737 ~	IS$$152126405445212 ~	~	~	31.43~	3204081
TCD 120-129-16T3-1.5D	HEAD TYPE ~	12.00	12.90	16.00	20.00	20.0	18.0~	35.0	48.0	83.00	1.82	12	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-120-P	1~	12.00~	1.50~	11 ~	ZYL ~	IS$$131608498533070 ~	IS$$152125943321430 ~	IS$$162390277245906 ~	IS$$171363649314758 ~	~	33.18~	3204082
TCD 130-139-16T3-1.5D	HEAD TYPE ~	13.00	13.90	16.00	20.00	22.0	20.0~	37.1	48.0	85.10	1.96	13	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-130-P	1~	13.00~	1.50~	11 ~	ZYL ~	IS$$112376359839224 ~	IS$$152126838854952 ~	IS$$161803728135751 ~	~	~	35.14~	3204083
TCD 140-149-16T3-1.5D	HEAD TYPE ~	14.00	14.90	16.00	20.00	23.0	21.0~	41.1	48.0	89.10	2.12	14	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-140-P	1~	14.00~	1.50~	11 ~	ZYL ~	IS$$162167141685650 ~	IS$$172430828967540 ~	IS$$201915292229508 ~	IS$$201915403314355 ~	IS$$212179090997874 ~	38.98~	6342380
TCD 150-159-20T3-1.5D	HEAD TYPE ~	15.00	15.90	20.00	25.00	25.0	23.0~	46.2	50.0	96.20	2.27	15	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-150-P	1~	15.00~	1.50~	11 ~	ZYL ~	IS$$132134388972960 ~	~	~	~	~	43.93~	3202912
TCD 160-169-20T3-1.5D	HEAD TYPE ~	16.00	16.90	20.00	25.00	26.0	24.0~	49.3	50.0	99.30	2.42	16	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-160-P	1~	16.00~	1.50~	11 ~	ZYL ~	IS$$132132268261140 ~	~	~	~	~	46.88~	3202913
TCD 170-179-20T3-1.5D	HEAD TYPE ~	17.00	17.90	20.00	25.00	29.0	26.0~	52.4	50.0	102.40	2.59	17	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-170-P	1~	17.00~	1.50~	11 ~	ZYL ~	IS$$132149509887921 ~	IS$$142413898286361 ~	~	~	~	49.81~	3204293
TCD 180-189-25T2-1.5D	HEAD TYPE ~	18.00	18.90	25.00	32.00	30.0	27.0~	55.5	56.0	111.50	2.73	18	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-180-P	1~	18.00~	1.50~	11 ~	ZYL ~	IS$$132148942556094 ~	~	~	~	~	52.77~	3204085
TCD 190-199-25T2-1.5D	HEAD TYPE ~	19.00	19.90	25.00	32.00	32.0	29.0~	58.5	56.0	114.50	2.88	19	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-190-P	1~	19.00~	1.50~	11 ~	ZYL ~	IS$$132314423876047 ~	~	~	~	~	55.62~	3204086
TCD 200-209-25T2-1.5D	HEAD TYPE ~	20.00	20.90	25.00	32.00	33.0	30.0~	61.6	56.0	117.60	3.02	20	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-200-P	1~	20.00~	1.50~	11 ~	ZYL ~	IS$$132203784445512 ~	~	~	~	~	58.58~	3204412
TCD 210-219-25T2-1.5D	HEAD TYPE ~	21.00	21.90	25.00	32.00	35.0	32.0~	64.7	56.0	120.70	3.18	21	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-210-P	1~	21.00~	1.50~	11 ~	ZYL ~	IS$$112189203327616 ~	IS$$122457206424320 ~	~	~	~	61.52~	3204413
TCD 220-229-25T2-1.5D	HEAD TYPE ~	22.00	22.90	25.00	32.00	36.0	33.0~	67.8	56.0	123.80	3.24	22	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-220-P	1~	22.00~	1.50~	11 ~	ZYL ~	IS$$112189563770295 ~	~	~	~	~	64.56~	3204414
TCD 230-239-32T2-1.5D	HEAD TYPE ~	23.00	23.90	32.00	42.00	38.0	35.0~	70.8	60.0	130.80	3.46	23	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-230-P	1~	23.00~	1.50~	11 ~	ZYL ~	IS$$112189924213478 ~	~	~	~	~	67.34~	3204415
TCD 240-249-32T2-1.5D	HEAD TYPE ~	24.00	24.90	32.00	42.00	40.0	36.0~	73.9	60.0	133.90	3.62	24	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-240-P	1~	24.00~	1.50~	11 ~	ZYL ~	IS$$112191793856560 ~	~	~	~	~	70.28~	3204416
TCD 250-259-32T2-1.5D	HEAD TYPE ~	25.00	25.90	32.00	42.00	42.0	38.0~	77.0	60.0	137.00	3.80	25	Y ~	~	2~	0~	0~	W ~	71E01A0608FE4 ~	TCD-250-P	1~	25.00~	1.50~	11 ~	ZYL ~	IS$$112192336946412 ~	~	~	~	~	73.20~	3204417
