TaeguTec Cutting Tools - Metal Working Tools - Turning -

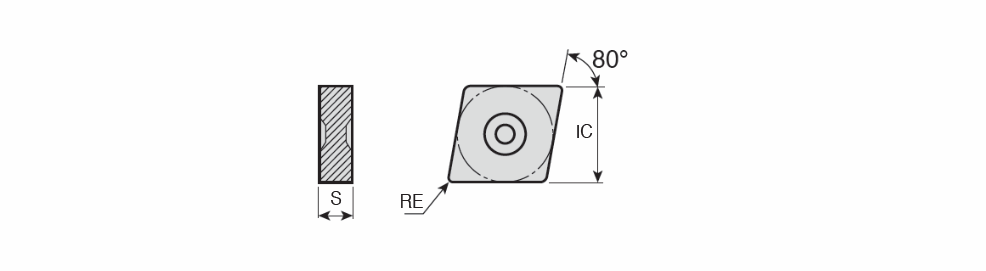

CNGX-CERAMIC : Negative 80° Rhombic ground Ceramic Dimple inserts for cast iron roughing

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNGX 120708 T7-WZ	12.70	7.94	0.80	12.90~	80~	0.00~	0.10	3.50	0.05	0.30	4~	P ~	~	C ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$CN1207082NA$$08 ~	452 T7 ~	CNGX ~	Y ~	12 ~	5702515	1	AS10
CNGX 120712 CH	12.70	7.94	1.20	12.90~	80~	0.00~	0.10	3.50	0.05	0.30	4~	P ~	~	C ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$CN1207122NA$$12 ~	453 CH ~	CNGX ~	Y ~	12 ~	5701747	1	AS10
CNGX 120712 T7-CH	12.70	7.94	1.20	12.90~	80~	0.00~	0.10	3.50	0.05	0.30	4~	P ~	~	C ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$CN1207122NA$$12 ~	453 T7 ~	CNGX ~	Y ~	12 ~	5702731	2	AS10 AS500
CNGX 120712 T7-WZ	12.70	7.94	1.20	12.90~	80~	0.00~	0.10	3.50	0.05	0.30	4~	P ~	~	C ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$CN1207122NA$$12 ~	453 T7 ~	CNGX ~	Y ~	12 ~	5702516	1	AS10
CNGX 120716 CH	12.70	7.94	1.60	12.90~	80~	0.00~	0.10	3.50	0.05	0.35	4~	P ~	~	C ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$CN1207162NA$$16 ~	454 CH ~	CNGX ~	Y ~	12 ~	6342629	2	AS10 SC10
CNGX 120716 T7-CH	12.70	7.94	1.60	12.90~	80~	0.00~	0.10	3.50	0.05	0.35	4~	P ~	~	C ~	71DD68D301C30 ~	Ceramic ~	AS500 ~	2~	ISO$CN1207162NA$$16 ~	454 T7 ~	CNGX ~	Y ~	12 ~	5702996	1	AS500

T7: Land 0.20 x 20°
WZ : Wiper geometry / CH : Dimple type
