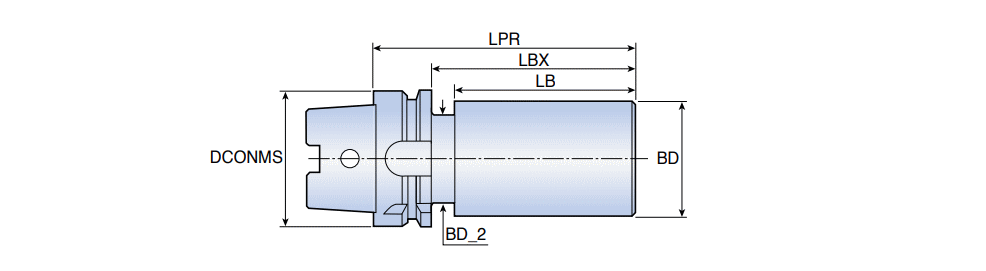

HSK A-B-MN : Blank with HSK DIN 69893 form A taper shanks

Designation	DCONMS	BD	BD_2	LPR	LBX	LB		d2	ClssID	LTA	GICAT	GIREM	giic	GICODE
HSK A 100 B16MN 100	100	102.00	85.00	100.00	71.0	54.80	6.22	0.00~	71EAD3871D313 ~	100.00~	4601941		0
HSK A 100 B16MN 200	100	102.00	85.00	200.00	171.0	154.80	12.60	0.00~	71EAD3871D313 ~	200.00~	4601942		0

Material: Case hardened alloy steel
Shank hardness 58 HRC minimum
G172 G172 - Nose hardness 35-37 HRC
