Home Page > Milling & Solid End mills > > 6RBE 50-M

Milling & Solid End mills
Main Application

Related Tool

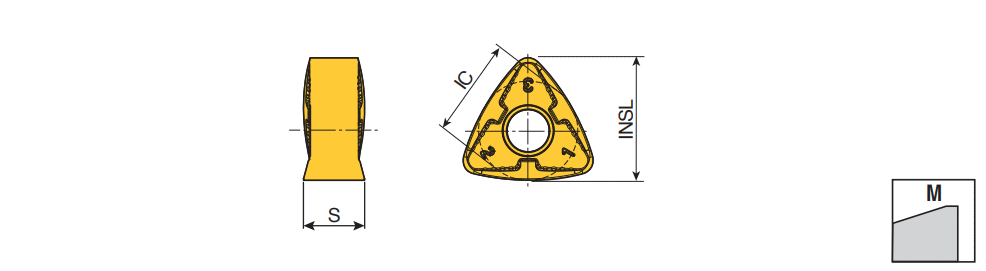

6RBE 50-M : Double-sided inserts with 6 cutting edges for rough ball tools

Designation	IC	S	INSL	ap (min)	ap (max)	fz (max)	fz (min)	S1	SC	ClssID	CEDC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
6RBE 50-M	13.00	8.00	16.0	1.00	5.00	0.800	0.100	50.00~	B ~	71DDA089C8D1E ~	6~	U60 ~	M ~	TT2510~	IS$$162379836540459 ~	6RBE 50 ~	0~	6126885		5		TT8020 TT8080 TT7800 TT9080 TT2510
