Tooling System
Main Application

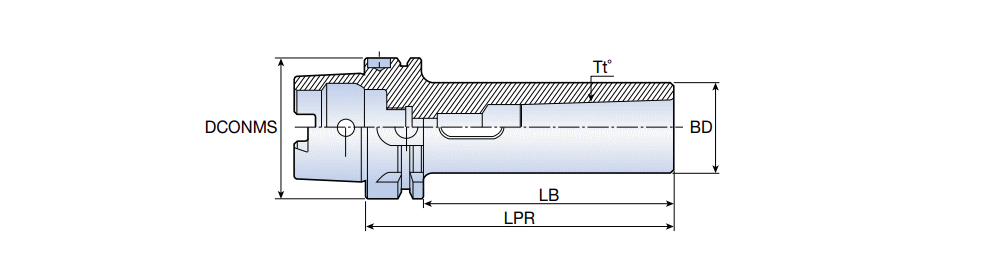

HSK A-MT : DIN 6383 / DIN 228-2 form D tang Morse taper adapter with HSK DIN 69893 form A taper shanks


 IT_N5  IT_SURFACE HARDNESS 59~61HRC  IT_RUN-OUT A0.005
  DesignationDCONMS Tt BD LPR LB d2 ClssID LTA GICATGIREMgiicGICODE
  HSK A 63 MT1X110 63 MT1 25.00110.0084.00.920.00~71EAD3871D313 ~110.00~4601864 0
  HSK A 63 MT2X120 63 MT2 32.00120.0094.01.090.00~71EAD3871D313 ~120.00~4601865 0
  HSK A 63 MT3X140 63 MT3 40.00140.00114.01.450.00~71EAD3871D313 ~140.00~4601866 0
  HSK A 63 MT4X160 63 MT4 48.00160.00134.01.890.00~71EAD3871D313 ~160.00~4601867 0
  HSK A 100 MT1X110 100 MT1 25.00110.0081.02.270.00~71EAD3871D313 ~110.00~4601868 0
  HSK A 100 MT2X120 100 MT2 32.00120.0091.02.390.00~71EAD3871D313 ~120.00~4601869 0
  HSK A 100 MT3X150 100 MT3 40.00150.00121.02.830.00~71EAD3871D313 ~150.00~4601870 0
  HSK A 100 MT4X170 100 MT4 48.00170.00141.03.310.00~71EAD3871D313 ~170.00~4601871 0
  HSK A 100 MT5X200 100 MT5 63.00200.00171.04.600.00~71EAD3871D313 ~200.00~4601872 0
