TaeguTec Cutting Tools - Metal Working Tools - Turning -

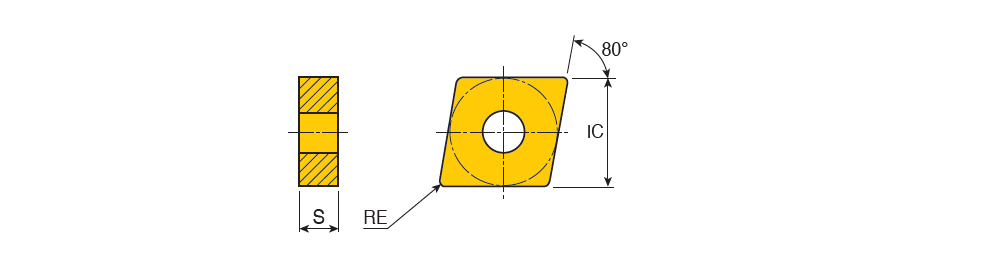

CNMA : Negative 80° Rhombic inserts without chip former for cast irons & short-chipped materials

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMA 120404	12.70	4.76	0.40	12.90~	80~	0.00~	1.00	5.00	0.15	0.50	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	K10 ~	2~	ISO$CN1204042NA$$04 ~	431 ~	CNMA ~	Y ~	12 ~	5523774	3	K10 TT7015 TT7005
CNMA 120408	12.70	4.76	0.80	12.90~	80~	0.00~	1.00	6.00	0.15	0.60	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	K10 ~	2~	ISO$CN1204082NA$$08 ~	432 ~	CNMA ~	Y ~	12 ~	6186038	4	TT7025 K10 TT7015 TT7005
CNMA 120412	12.70	4.76	1.20	0.00~	0~	0.00~	1.50	6.00	0.15	0.70	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1204122NA$$12 ~	433 ~	CNMA ~	Y ~	12 ~	6189108	2	TT7025 TT7005
CNMA 120416	12.70	4.76	1.60	12.90~	80~	0.00~	2.00	6.00	0.20	0.80	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1204162NA$$16 ~	434 ~	CNMA ~	Y ~	12 ~	5523776	2	TT7015 TT7005
CNMA 160612	15.88	6.35	1.20	15.90~	80~	0.00~	2.00	8.00	0.15	0.70	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1606122NA$$12 ~	543 ~	CNMA ~	Y ~	16 ~	5523778	2	TT7015 TT7005
CNMA 160616	15.88	6.35	1.60	15.90~	80~	0.00~	2.00	8.00	0.20	0.80	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1606162NA$$16 ~	544 ~	CNMA ~	Y ~	16 ~	5523888	2	TT7015 TT7005
CNMA 190608	19.05	6.35	0.80	19.30~	80~	0.00~	2.00	10.00	0.15	0.70	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1906082NA$$08 ~	642 ~	CNMA ~	Y ~	19 ~	5523779	2	TT7015 TT7005
CNMA 190612	19.05	6.35	1.20	19.30~	80~	0.00~	2.00	10.00	0.15	0.70	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1906122NA$$12 ~	643 ~	CNMA ~	Y ~	19 ~	5523780	2	TT7015 TT7005
CNMA 190616	19.05	6.35	1.60	19.30~	80~	0.00~	3.00	10.00	0.15	1.00	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	TT7005~	2~	ISO$CN1906162NA$$16 ~	644 ~	CNMA ~	Y ~	19 ~	5523781	2	TT7015 TT7005
