TaeguTec Cutting Tools - Metal Working Tools - Turning -

SNMG-ET : Negative Square inserts for rough machining of exotic materials

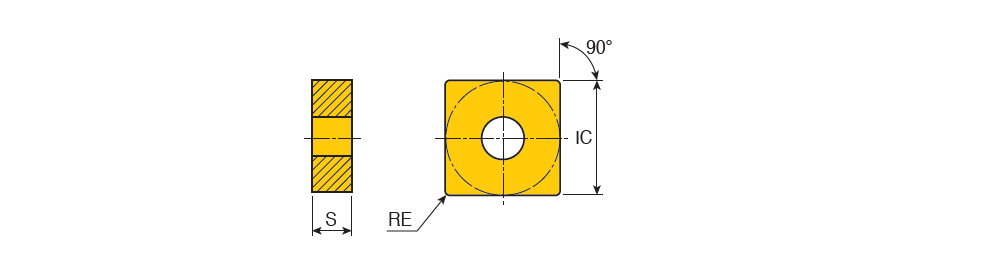

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMG 120408 ET	12.70	4.76	0.80	12.70~	ET ~	90~	0.00~	2.00	7.00	0.25	0.70	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT3010~	2~	ISO$SN1204082NB$$08 ~	432 ET ~	SNMG ~	Y ~	12 ~	6336777	8	TT8080 TT9235 TT9080 TT9225 TT3020 TT3010 TT5080 TT9215
SNMG 120412 ET	12.70	4.76	1.20	12.70~	ET ~	90~	0.00~	2.00	7.00	0.30	0.70	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT3010~	2~	ISO$SN1204122NB$$12 ~	433 ET ~	SNMG ~	Y ~	12 ~	6336779	7	TT9235 TT9080 TT9225 TT3020 TT3010 TT5080 TT9215
SNMG 190608 ET	19.05	6.35	0.80	19.05~	ET ~	90~	0.00~	3.00	9.00	0.30	0.75	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5080~	2~	ISO$SN1906082NB$$08 ~	642 ET ~	SNMG ~	Y ~	19 ~	5580403	4	TT9235 TT9080 TT5080 TT9215
SNMG 190612 ET	19.05	6.35	1.20	19.05~	ET ~	90~	0.00~	3.00	9.00	0.35	0.75	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5080~	2~	ISO$SN1906122NB$$12 ~	643 ET ~	SNMG ~	Y ~	19 ~	5580407	3	TT9080 TT9225 TT5080
