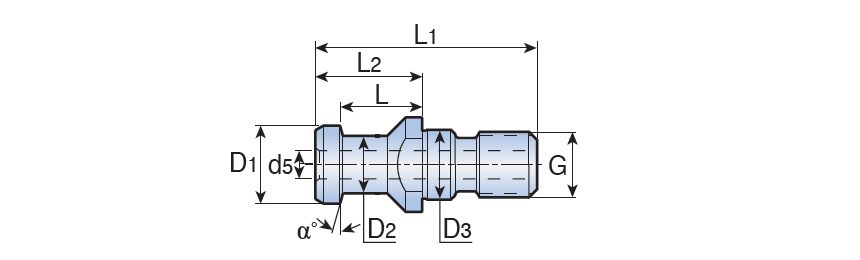

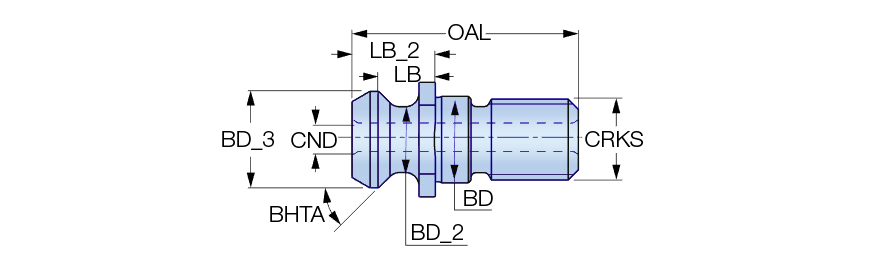

PS CAT-ISO (PULL STUD) : CAT Pull stud with ISO retention knob

Designation	SS	G	D1	D2	D3	d5	L	L1	L2	a	GICAT	GIREM	giic	GICODE
PS CAT40 45 M16 ISO B	40	M16	13.35	12.90	17.00	7.3	11.15	44.5	16.40	45.0	4650653		0
PS CAT50 45 M24 ISO B	50	M24	13.35	19.60	25.00	8.0	17.95	65.5	25.55	45.0	4650654		0
