TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

BLMP 06-MM : Unique double-sided inserts of 4 cutting edges for high feed milling of stainless steel 400 & Ti-alloy in max. ap 1.0 mm

TT3540&TT9540 : Available upon customer request.

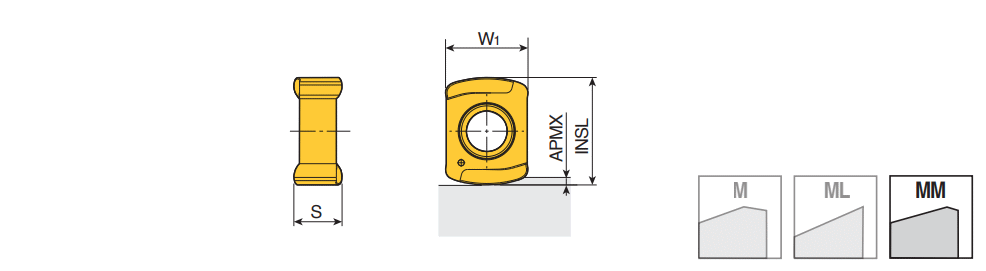

Designation	INSL	W1	S	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	Rg		Pocket	ESP	ClssID	CB	GRDMFG	IIC	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
BLMP 0603R-MM	9.00	6.39	3.73	1.00	6.00~	0.10	1.00	1.200	0.300	M7.5 ~	C2F-BL06 ~	4~	B ~	2.0~	0.00~	BLMP 06 ~	U50 ~	71DDA089C8D1E ~	MM ~	TT2510~	IS$$877771310369352 ~	0~	6252110		8		TT8020 TT8080 TT3540 TT9540 TT3535 TT3520 TT9080 TT2510

Click the Better Suggestions icon to see more choices.
