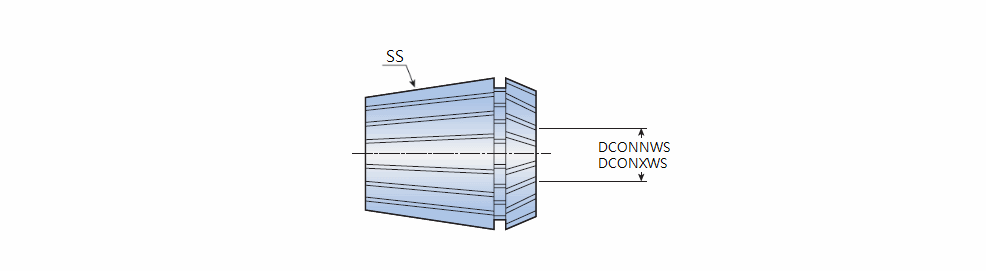

SET ER-SPR : DIN 6499 ER Spring collet set in standard precision

Designation	SS	Qty	DCONNWS	DCONXWS	S1	GICAT
SET ER11 SPR 13	ER11	13	0.50	7.00	11.00~	6225228
SET ER16 SPR 10	ER16	10	0.50	10.00	16.00~	4650598
SET ER20 SPR 12	ER20	12	1.00	13.00	20.00~	4650599
SET ER25 SPR 15	ER25	15	1.00	16.00	25.00~	4650600
SET ER32 SPR 18	ER32	18	2.00	20.00	32.00~	4650601
SET ER40 SPR 23	ER40	23	3.00	26.00	40.00~	4650602
SET ER50 SPR 12	ER50	12	10.00	34.00	50.00~	4650603
