Home Page > Hole Making > > AOMT 06-C45

Hole Making
Main Application

More Info Related Tool

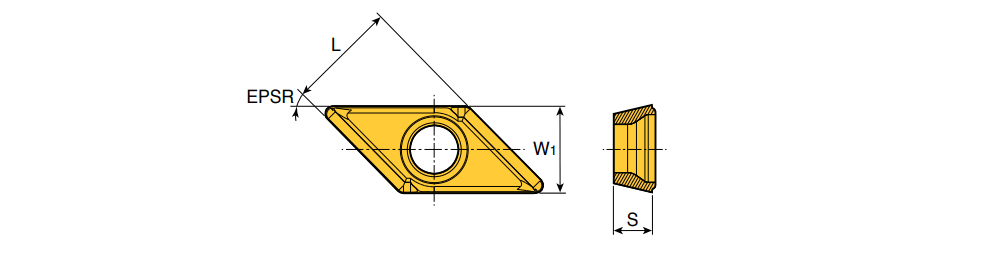

AOMT 06-C45 : Chamfering inserts for DRILLRUSH head changeable drills with pre-thread hole

Designation	W1	L	S	EPSR	S1	CBMD	SC	ClssID	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
AOMT 040204-C45	3.60	5.20	1.80	45.0	0.00~	~	A ~	71D1AA489FD6E ~	TT9080~	~	6244425		1		TT9080
AOMT 060204-C45	4.50	5.66	1.96	45.0	1.00~	~	A ~	71D1AA489FD6E ~	TT9080~	IS$$81275302929324 ~	5523917		1		TT9080
