TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

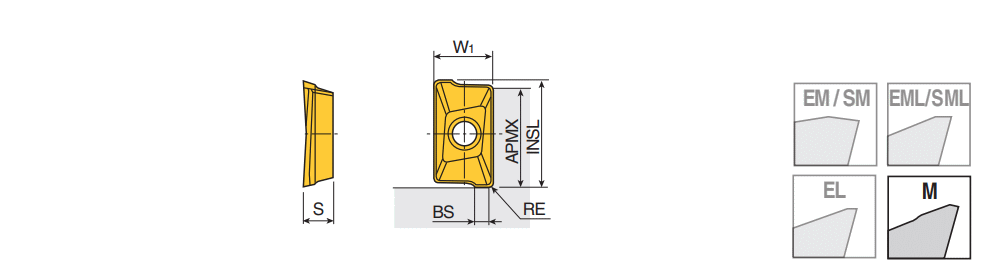

APKT 1705 PER-M : Positive inserts with ground wiper flat for better surface finish and two high positive helical cutting edges of APKT 17 in 90° shoulders

Designation	INSL	W1	S	BS	RE	APMX	S1	S2	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	apmax MF	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
APKT 1705 PER-M	18.50	10.70	5.56	3.17	0.80	16.00	17.00~	1.00000 ~	2~	CM-AP17 ~	4.50	13.00	0.180	0.090	M8 ~	A ~	71DD68D91938A ~	U60 ~	3.90~	M ~	TT6080~	IS$$739590827922440 ~	APKT 17 ~	0~	5613588		3		TT8020 TT7080 TT6080
