TaeguTec Cutting Tools - Metal Working Tools - Turning -

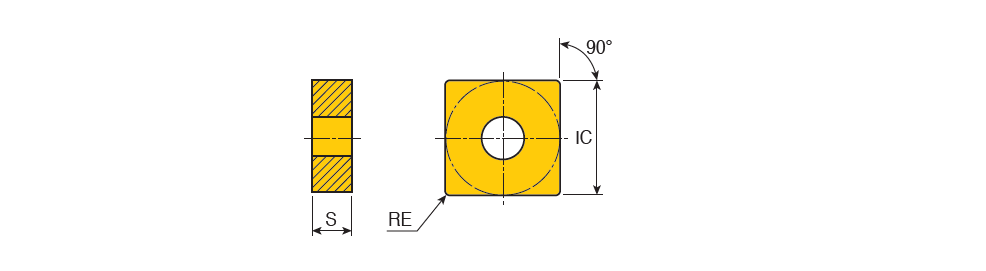

SNMG-EM (RHINO) : Negative Square RHINOTURN inserts for medium machining of stainless steels

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMG 090408 EM	9.52	4.76	0.80	EM ~	90~	0.00~	0.50	3.00	0.13	0.40	8~	~	U ~	9.52~	S ~	71DD68D829217 ~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$SN0904082NB$$08 ~	332 EM ~	SNMG ~	Y ~	9 ~	6118446		3		TT9080 TT9225 TT5080
SNMG 090412 EM	9.52	4.76	1.20	EM ~	90~	0.00~	0.70	3.00	0.15	0.40	8~	~	U ~	9.52~	S ~	71DD68D829217 ~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$SN0904122NB$$12 ~	333 EM ~	SNMG ~	Y ~	~	6118410		3		TT9080 TT5080 TT9215
