TaeguTec Cutting Tools - Metal Working Tools - Turning -

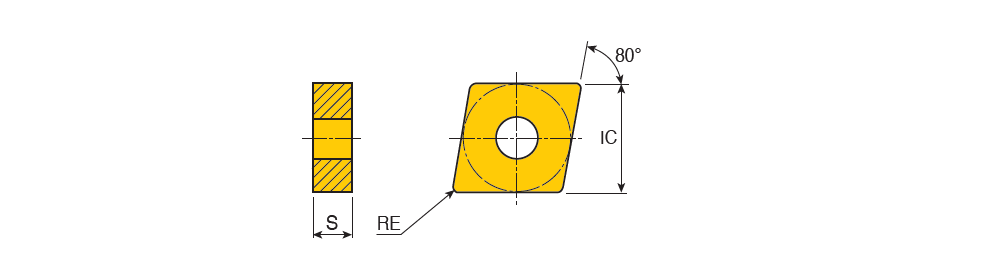

CNMG-ML : Negative 80° Rhombic inserts for medium light applications of stainless steel, steel and aluminum

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 120404 ML	12.70	4.76	0.40	12.90~	ML ~	80~	0.00~	0.80	3.50	0.10	0.30	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1204042NB$$04 ~	431 ML ~	CNMG ~	Y ~	12 ~	6241720	9	TT8020 TT8080 TT9225 TT5100 TT8125B TT5080 TT9215 TT8115B K10
CNMG 120408 ML	12.70	4.76	0.80	12.90~	ML ~	80~	0.00~	1.00	3.50	0.12	0.35	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8125B ~	2~	ISO$CN1204082NB$$08 ~	432 ML ~	CNMG ~	Y ~	12 ~	6213085	10	TT8020 TT8080 TT8135B TT9080 TT9225 TT5100 TT8125B TT5080 TT9215 K10
CNMG 120412 ML	12.70	4.76	1.20	12.90~	ML ~	80~	0.00~	1.30	3.50	0.15	0.35	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1204122NB$$12 ~	433 ML ~	CNMG ~	Y ~	12 ~	6241955	4	TT8080 TT5100 TT5080 TT8115B
CNMG 190612 ML	19.05	6.35	1.20	19.30~	ML ~	80~	0.00~	3.00	8.00	0.25	0.55	4~	~	U ~	C ~	71DD68D301C30 ~	PVD ~	TT5080~	2~	ISO$CN1906122NB$$12 ~	643 ML ~	CNMG ~	Y ~	19 ~	5523157	1	TT5080
