TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

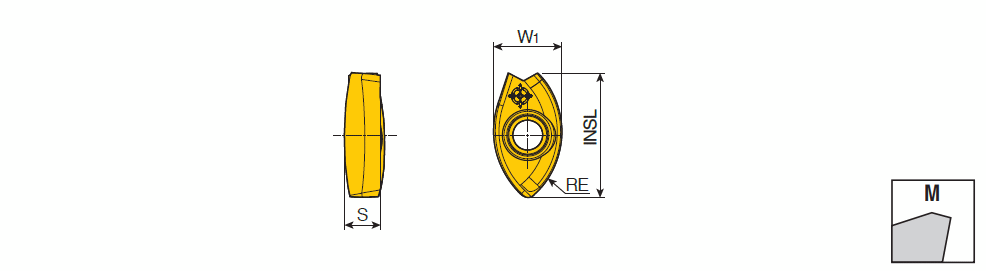

2FB 16/20/25/30/32-M. : Double-sided ball nose inserts with two helical cutting edges for roughing & semi-finishing in general applications

TT3540&TT9540 : Available upon customer request.

Designation	INSL	W1	S	APMX	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	SC	ClssID	CEDC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
2FB160-M	12.40	6.80	3.70	8.00	8.00	16.00~	2.00	6.50	0.300	0.070	M6 ~	2B-16 ~	B ~	71DDA089C8D1E ~	2~	G60 ~	M ~	TT2510~	IS$$105449831798017 ~	2FB160 ~	0~	6126875	4	TT8020 TT8080 TT9080 TT2510
2FB200-M	14.90	8.20	4.80	10.00	10.00	20.00~	3.00	8.00	0.350	0.080	M6 ~	2B-20 ~	B ~	71DDA089C8D1E ~	2~	G60 ~	M ~	TT2510~	IS$$143791437570345 ~	2FB200 ~	0~	6126876	4	TT8020 TT8080 TT9080 TT2510
2FB250-M	18.90	10.20	5.90	12.50	12.50	25.00~	3.50	10.00	0.400	0.080	M6 ~	2B-25 ~	B ~	71DDA089C8D1E ~	2~	G60 ~	M ~	TT2510~	IS$$143767661161024 ~	2FB250 ~	0~	6126877	5	TT8020 TT8080 TT7800 TT9080 TT2510
2FB300-M	22.10	11.80	6.80	15.00	15.00	30.00~	4.00	12.50	0.400	0.080	M6 ~	2B-30 ~	B ~	71DDA089C8D1E ~	2~	G60 ~	M ~	TT2510~	IS$$297916389407790 ~	2FB300 ~	0~	6126878	5	TT8020 TT8080 TT7800 TT9080 TT2510
2FB320-M	23.90	12.80	7.50	16.00	16.00	32.00~	4.50	13.00	0.400	0.080	M6 ~	2B-32 ~	B ~	71DDA089C8D1E ~	2~	G60 ~	M ~	TT2510~	IS$$124311430126992 ~	2FB320 ~	0~	6126879	5	TT8020 TT8080 TT7800 TT9080 TT2510
