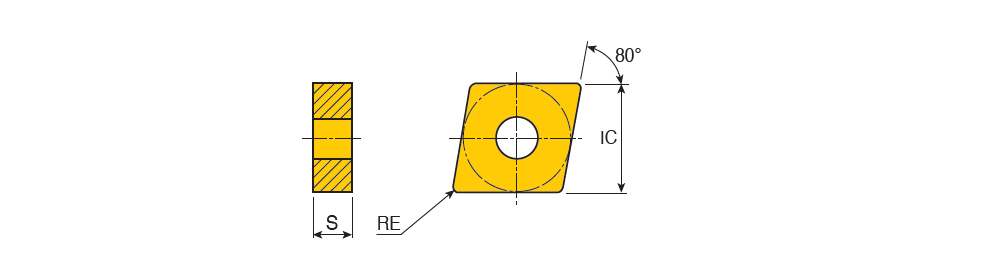

CNMG-MP : Negative 80° Rhombic inserts for medium machining of steels & stainless steels

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 120404 MP	12.70	4.76	0.40	12.90~	MP ~	80~	0.00~	0.80	4.00	0.10	0.30	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1204042NB$$04 ~	431 MP ~	CNMG ~	Y ~	12 ~	6241723		9	TT8020 TT8080 TT9235 TT9225 TT5100 TT8125B TT5080 TT9215 TT8115B
CNMG 120408 MP	12.70	4.76	0.80	12.90~	MP ~	80~	0.00~	1.00	4.00	0.12	0.40	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1204082NB$$08 ~	432 MP ~	CNMG ~	Y ~	12 ~	6282434		14	TT8020 TT8080 TT9235 TT7100 TT8135B TT9080 TT9225 TT3020 TT5100 TT8125B TT5080 TT9215 TT8115B TT7005
CNMG 120412 MP	12.70	4.76	1.20	12.90~	MP ~	80~	0.00~	1.50	4.00	0.15	0.50	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	TT5080~	2~	ISO$CN1204122NB$$12 ~	433 MP ~	CNMG ~	Y ~	12 ~	5523018		6	TT8020 TT9235 TT9225 TT5100 TT5080 TT9215
CNMG 160612 MP	15.88	6.35	1.20	16.17~	MP ~	80~	0.00~	2.50	6.00	0.15	0.50	4~	~	U ~	C ~	~	CVD ~	8125B ~	2~	ISO$CN1606122NB$$12 ~	543 MP ~	CNMG ~	Y ~	16 ~	6241737	Type B chip breaker	1	TT8125B
