TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

2F 16/20/25/30/32-M : Ball nose end mills for rough or semi-finish profiling with T-FLEXTEC modular adaptation with one insert of both internal and external pockets in diameters of 16/20/25/30/32 mm

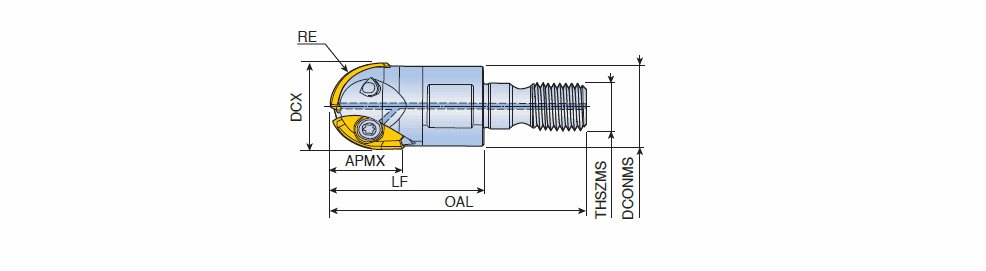

Designation	Tool sty	DCX	CICT	RE	DCONMS	LF	OAL	THSZMS	APMX	S1	RMPX		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	TQ_3	GICAT
2F 16-11-M08	MODULAR ~	16.00	2	8.00	13.00	25.00	42.50	M08	11.80	16.00~	4.90~	0.03	2.0~	~	~	RC ~	~	71E01A05D27A8 ~	2FB160-M	O ~	SAI ~	02 ~	IS$$105449831798017 ~	25.00~	0~	3113362
2F 20-13-M10	MODULAR ~	20.00	2	10.00	18.00	30.00	50.00	M10	13.60	20.00~	3.40~	0.06	2.0~	~	~	RC ~	~	71E01A05D27A8 ~	2FB200-M	O ~	SAI ~	02 ~	IS$$143791437570345 ~	30.00~	0~	3113363
2F 25-17-M12	MODULAR ~	25.00	2	12.50	21.00	35.00	57.00	M12	17.70	25.00~	1.80~	0.11	2.0~	~	~	C ~	~	71E01A05D27A8 ~	2FB250-M	O ~	SAI ~	02 ~	IS$$143767661161024 ~	35.00~	0~	3113364
2F 30-20-M16	MODULAR ~	30.00	2	15.00	29.00	43.00	68.00	M16	20.00	30.00~	2.20~	0.20	2.0~	~	~	C ~	~	71E01A05D27A8 ~	2FB300-M	O ~	SAI ~	02 ~	IS$$297916389407790 ~	43.00~	0~	6105616
2F 32-21-M16	MODULAR ~	32.00	2	16.00	29.00	43.00	68.00	M16	21.40	32.00~	2.00~	0.21	2.0~	~	~	C ~	~	71E01A05D27A8 ~	2FB320-M	O ~	SAI ~	02 ~	IS$$124311430126992 ~	43.00~	0~	6105617
