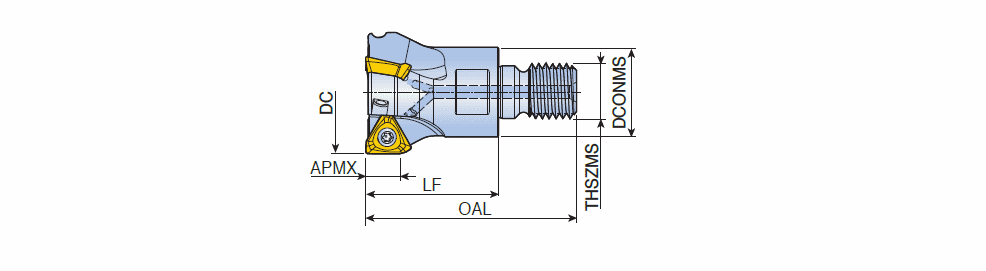

3P TE90-M-06 : 90° Modular end mills with T-FLEXTEC adaptation & high positive three helical cutting edges of 3PK(H)T 06 inserts

Designation	Tool sty	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX		S1	RMPX	PD		Insert	ClssID	MIID	KAPR	CCTMS	CCFMS	IIC	IIC_2	LTA	TQ_3	ZEFF	ZEFP	GICAT
3P TE90-216-M08-06	MODULAR ~	16.00	2	13.00	23.00	40.50	M08	4.70	O ~	6.00~	2.30~	RC ~	0.03	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	90.0~	SAI ~	02 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	23.00~	0~	2~	2~	3113331
3P TE90-217-M08-06	MODULAR ~	17.00	2	13.00	23.00	40.50	M08	4.70	O ~	6.00~	0.00~	RC ~	0.03	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	90.0~	SAI ~	02 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	23.00~	0~	2~	2~	6256520
3P TE90-320-M10-06	MODULAR ~	20.00	3	18.00	35.00	55.00	M10	4.70	O ~	6.00~	1.60~	RF ~	0.07	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	90.0~	SAI ~	02 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	35.00~	0~	3~	3~	3113332
3P TE90-420-M10-06	MODULAR ~	20.00	4	18.00	35.00	55.00	M10	4.70	O ~	6.00~	1.60~	F ~	0.07	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	90.0~	SAI ~	02 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	35.00~	0~	4~	4~	3113333
3P TE90-425-M12-06	MODULAR ~	25.00	4	21.00	35.00	57.00	M12	4.70	O ~	6.00~	1.50~	RF ~	0.10	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	90.0~	SAI ~	02 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	35.00~	0~	4~	4~	3113334
3P TE90-525-M12-06	MODULAR ~	25.00	5	21.00	35.00	57.00	M12	4.70	O ~	6.00~	1.50~	F ~	0.10	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	90.0~	SAI ~	02 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	35.00~	0~	5~	5~	3113335
3P TE90-632-M16-06	MODULAR ~	32.00	6	29.00	43.00	68.00	M16	4.70	O ~	6.00~	1.20~	XF ~	0.23	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	90.0~	SAI ~	02 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	43.00~	0~	6~	6~	3113336
3P TE90-732-M16-06	MODULAR ~	32.00	7	29.00	43.00	68.00	M16	4.70	O ~	6.00~	1.20~	XF ~	0.23	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	90.0~	SAI ~	02 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	43.00~	0~	7~	7~	3113337
3P TE90-735-M16-06	MODULAR ~	35.00	7	29.00	43.00	68.00	M16	4.70	O ~	6.00~	1.00~	XF ~	0.24	MR-3P06 ~	71E01A05D27A8 ~	3PKT 060304R-M	90.0~	SAI ~	02 ~	IS$$405658693531035 ~	IS$$473484037273653 ~	43.00~	0~	7~	7~	3113338
