TaeguTec Cutting Tools - Metal Working Tools - Turning -

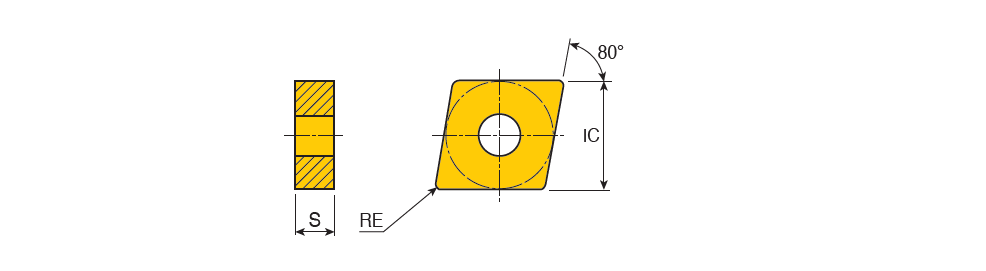

CNMG-FG (RHINO) : Negative 80° Rhombic RHINOTURN inserts for finishing & semi-finishing of steels, stainless steels and cast irons

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 090404 FG	9.52	4.76	0.40	FG ~	80~	0.00~	0.20	2.00	0.07	0.30	4~	~	U ~	9.70~	C ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$CN0904042NB$$04 ~	331 FG ~	CNMG ~	Y ~	9 ~	6212643	3	TT5100 TT8125B TT8115B
CNMG 090408 FG	9.52	4.76	0.80	FG ~	80~	0.00~	0.50	2.00	0.10	0.35	4~	~	U ~	9.70~	C ~	~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$CN0904082NB$$08 ~	332 FG ~	CNMG ~	Y ~	9 ~	6212655	3	TT5100 TT8125B TT8115B
CNMG 090412 FG	9.52	4.76	1.20	FG ~	80~	0.00~	0.50	2.00	0.15	0.40	4~	~	U ~	9.70~	C ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	8125B ~	2~	ISO$CN0904122NB$$12 ~	333 FG ~	CNMG ~	Y ~	9 ~	6241835	1	TT8125B
