TaeguTec Cutting Tools - Metal Working Tools - Turning -

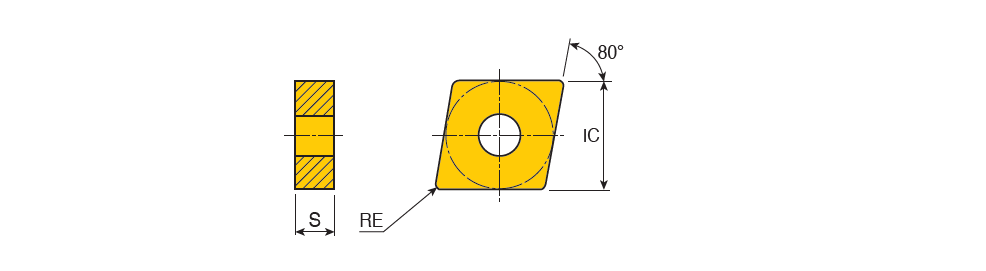

CNMG-MT (RHINO) : Negative 80° Rhombic RHINOTURN inserts for medium rough applications of steel, cast iron & stainless steel

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 090404 MT	9.52	4.76	0.40	MT ~	80~	0.00~	0.80	3.00	0.10	0.35	4~	~	U ~	9.70~	C ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$CN0904042NB$$04 ~	331 MT ~	CNMG ~	Y ~	9 ~	6241381	3	TT5100 TT8125B TT8115B
CNMG 090408 MT	9.52	4.76	0.80	MT ~	80~	0.00~	1.00	3.00	0.15	0.45	4~	~	U ~	9.70~	C ~	71DD68D301C30 ~	RHINO-TURN ~	Cermet ~	8105B ~	2~	ISO$CN0904082NB$$08 ~	332 MT ~	CNMG ~	Y ~	9 ~	6213152	9	TT8020 TT8135B TT9080 TT5100 TT8125B TT5080 TT8115B TT8105B CT3000
CNMG 090412 MT	9.52	4.76	1.20	MT ~	80~	0.00~	1.20	3.00	0.20	0.55	4~	~	U ~	9.70~	C ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$CN0904122NB$$12 ~	333 MT ~	CNMG ~	Y ~	9 ~	6212302	2	TT5100 TT8115B
