TaeguTec Cutting Tools - Metal Working Tools - Turning -

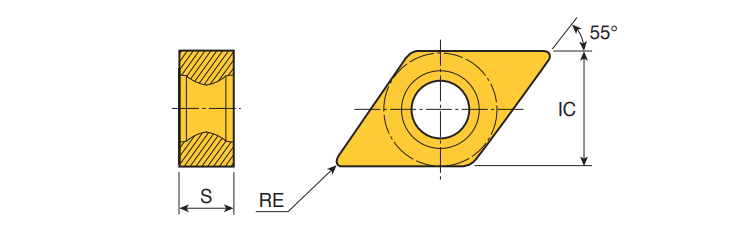

DNMG-FG (RHINO) : Negative 55° Rhombic RHINOTURN inserts for finishing & semi-finishing of steels, stainless steels and cast irons

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNMG 130504 FG	11.11	5.56	0.40	FG ~	55~	0.00~	0.20	2.00	0.07	0.30	4~	~	U ~	13.00~	D ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$DN1305042NB$$04 ~	3.53.5 ~	DNMG ~	Y ~	13 ~	6212665		3	TT5100 TT8125B TT8115B
DNMG 130508 FG	11.11	5.56	0.80	FG ~	55~	0.00~	0.50	2.00	0.10	0.35	4~	~	U ~	13.00~	D ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$DN1305082NB$$08 ~	3.53.5 ~	DNMG ~	Y ~	13 ~	6212391	Type B chip breaker	2	TT5100 TT8115B
DNMG 130512 FG	11.11	5.56	1.20	FG ~	55~	0.00~	0.50	2.00	0.15	0.40	4~	~	U ~	13.00~	D ~	~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$DN1305122NB$$12 ~	3.53.5 ~	DNMG ~	Y ~	13 ~	6235829	Type B chip breaker	1	TT8115B
