Home Page > Milling & Solid End mills > > HNCF 10-ML

Milling & Solid End mills
Main Application

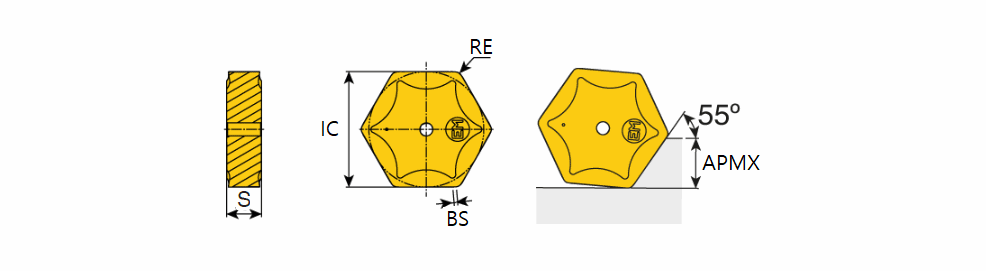

HNCF 10-ML : HEXA2MILL medium-light insert for cast iron machining.

Designation	IC	S	BS	RE	APMX	S1	W.link	ap (min)	ap (max)	fz (max)	fz (min)	Insert	SF	CEDC	SC	ClssID	ESP	CB	GRDMFG	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
HNCF 100510-ML	19.05	5.80	0.60	1.00	8.00	10.00~	3~	2.40	6.40	0.200	0.100	H2M-HN10C ~	M5.5 ~	12~	H ~	71DD68D7A8E5F ~	U40 ~	ML ~	TT6080~	HNCF 10 ~	0~	5613607		1		TT6080
