TaeguTec Cutting Tools - Metal Working Tools - Turning -

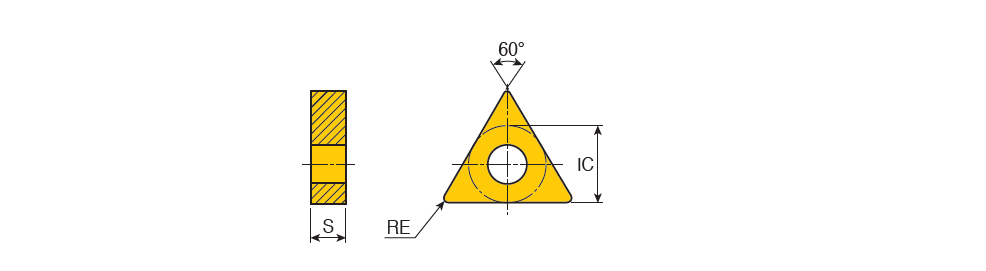

TNMG-EM (RHINO) : Negative 60° Triangular RHINOTURN inserts for medium machining of stainless steels

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 130408 EM	7.94	4.76	0.80	EM ~	60~	0.00~	0.50	3.00	0.13	0.40	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$TN1304082NB$$08 ~	2.532 ~	TNMG ~	Y ~	13 ~	6118458		4		TT9080 TT9225 TT5080 TT9215
TNMG 130412 EM	7.94	4.76	1.20	EM ~	60~	0.00~	0.70	3.00	0.15	0.40	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$TN1304122NB$$12 ~	2.533 ~	TNMG ~	Y ~	~	6118503		5		TT9235 TT9080 TT9225 TT5080 TT9215
