TaeguTec Cutting Tools - Metal Working Tools - Turning -

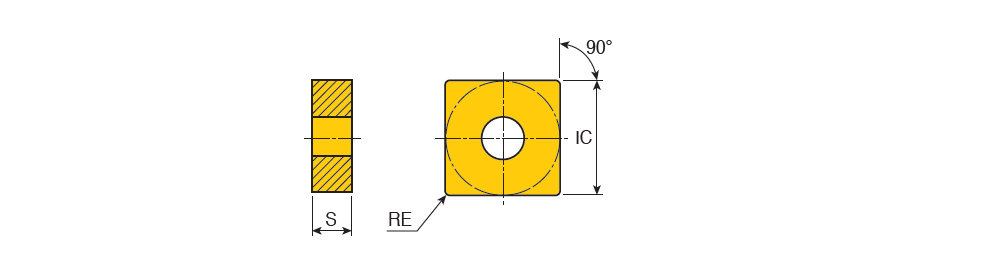

SNMG-FG (RHINO) : Negative Square RHINOTURN inserts for finishing & semi- finishing of steels, stainless steels and cast irons

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMG 090404 FG	9.52	4.76	0.40	FG ~	90~	0.00~	0.20	2.00	0.07	0.30	8~	~	U ~	9.52~	S ~	71DD68D829217 ~	RHINO-TURN ~	Cermet ~	CT3000~	2~	ISO$SN0904042NB$$04 ~	331 FG ~	SNMG ~	Y ~	9 ~	6106492		2		TT5100 CT3000
SNMG 090408 FG	9.52	4.76	0.80	FG ~	90~	0.00~	0.50	2.00	0.10	0.35	8~	~	U ~	9.52~	S ~	71DD68D829217 ~	RHINO-TURN ~	Cermet ~	8115B ~	2~	ISO$SN0904082NB$$08 ~	332 FG ~	SNMG ~	Y ~	9 ~	6241339		2		TT8115B CT3000
