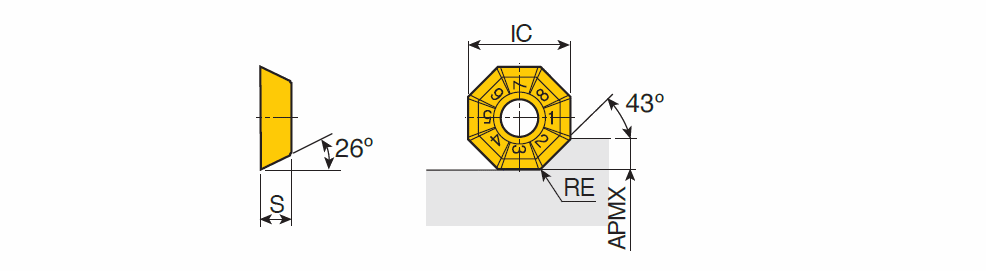

OFCT 05-AL : Octagonal super positive screw type milling inserts for aluminum & titanium alloys

Designation	IC	S	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CBMD	ESP	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
OFCT 05T3 TN-AL	12.70	3.67	0.50	3.50	5.00~	8~	CO-OF05 ~	1.00	2.80	0.500	0.100	M4 ~	O ~	71DD68D7CB4FA ~	~	G10 ~	K10 ~	IS$$125564154818460 ~	OFCT 05 ~	0~	5609500		1		K10
