Home Page > Milling & Solid End mills > > OFCW 05-MR

Milling & Solid End mills
Main Application

Related Tool

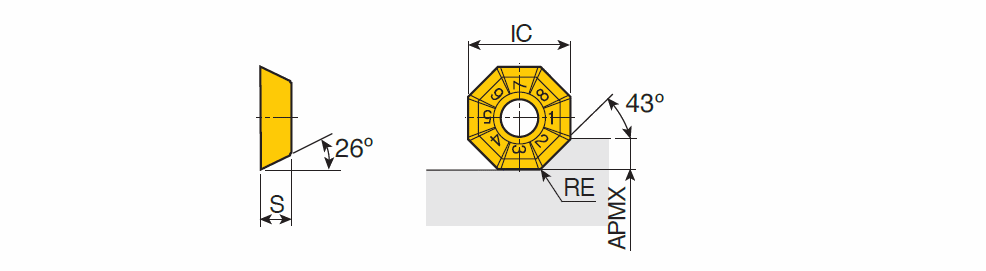

OFCW 05-MR : Octagonal super positive screw type & flat type milling inserts for hardened and molded steel

Designation	IC	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
OFCW 05T3 TN-MR	12.70	3.76	0.80	3.50	5.00~	1.00	3.00	0.080	0.040	M10 ~	8~	CO-OF05 ~	O ~	71DD68D7CB4FA ~	U70 ~	MR ~	TT9080~	IS$$125564154818460 ~	OFCW 05 ~	0~	5615585		1		TT9080
