TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

OFMR 07-M : CHASEOCTO octagonal milling insert positive rake used for stainless steel and high temperature alloys.

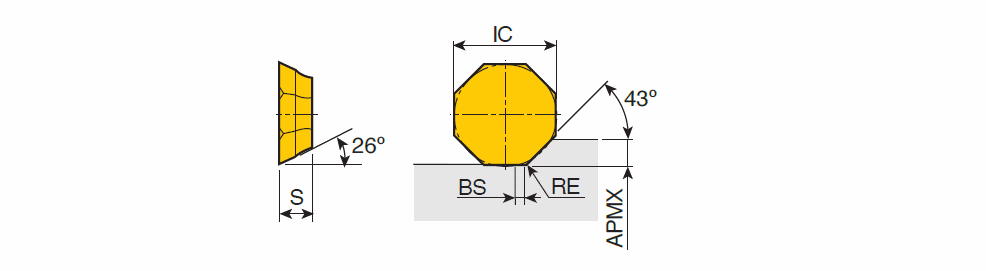

Designation	IC	S	RE	APMX	BS	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
OFMR 0704 AER-M	17.94	5.10	0.60	5.00	1.76	7.00~	8~	CO-OF07 ~	1.50	4.00	0.190	0.100	M8 ~	O ~	71DD68D7CB4FA ~	U60 ~	M ~	TT6080~	IS$$154688328580464 ~	OFMR 07 ~	0~	6341209		5		TT8020 TT8080 TT9030 TT9080 TT6080
