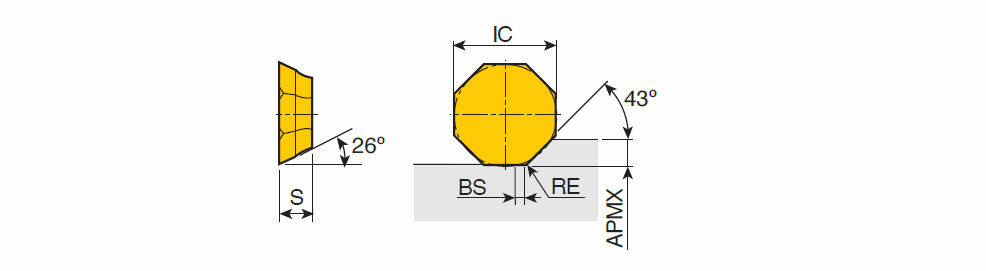

OFMR 07-AL : Octagonal super positive milling inserts for aluminum and titanium alloys in wedge clamping cutters

Designation	IC	S	BS	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
OFMR 0704 TN-AL	17.94	5.10	1.65	0.80	5.00	7.00~	8~	CO-OF07 ~	1.50	4.00	0.150	0.075	M4 ~	O ~	71DD68D7CB4FA ~	G10 ~	AL ~	K10 ~	IS$$154688328580464 ~	OFMR 07 ~	0~	5608936		1		K10
