TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

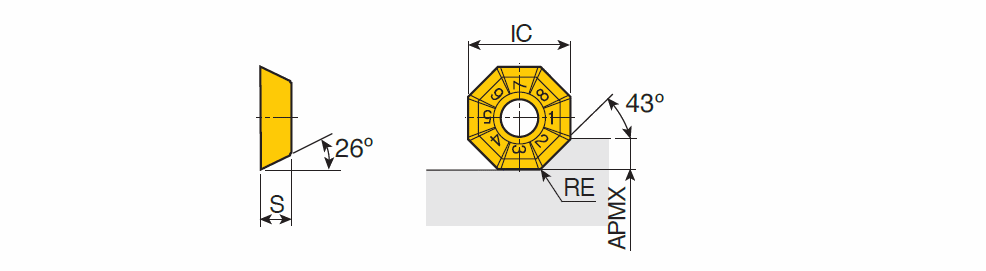

OFMT 05-ML : Octagonal super positive screw type milling inserts for stainless steel & low cutting force machining

Designation	IC	S	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
OFMT 05T3 TN-ML	12.70	3.80	0.60	3.50	5.00~	8~	CO-OF05 ~	1.00	3.00	0.120	0.060	M6 ~	O ~	71DD68D7CB4FA ~	U40 ~	ML ~	K10 ~	IS$$125564154818460 ~	OFMT 05 ~	0~	6342435		7		TT8020 TT8080 TT7080 TT9030 TT9080 K10 TT6080
