TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

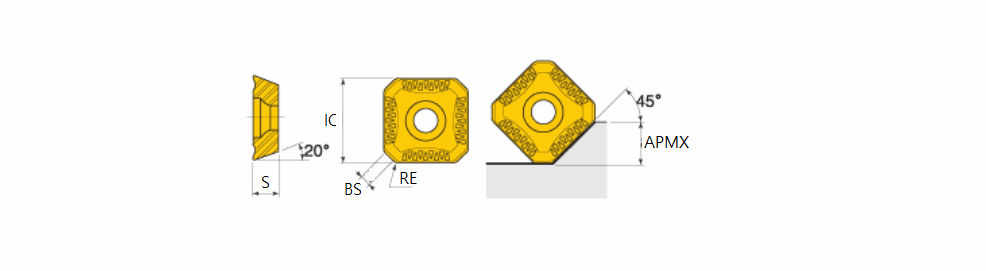

SEKT 12-M : High positive square inserts with four cutting edges for general applications in 45 cutters

Designation	IC	S	BS	RE	APMX	S1	W.link	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SEKT 12T3 AFTN-M	13.20	3.80	2.55	1.10	6.70	12.00~	10~	4~	CQ-SE12A ~	2.01	5.36	0.150	0.075	M8 ~	S ~	71DD68D829217 ~	U60 ~	M ~	CT7000~	IS$$220761278109115 ~	SEKT 12 ~	0~	5802331		8		TT8020 TT8080 TT7080 TT9030 TT9080 CT7000 K10 TT6080
