TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

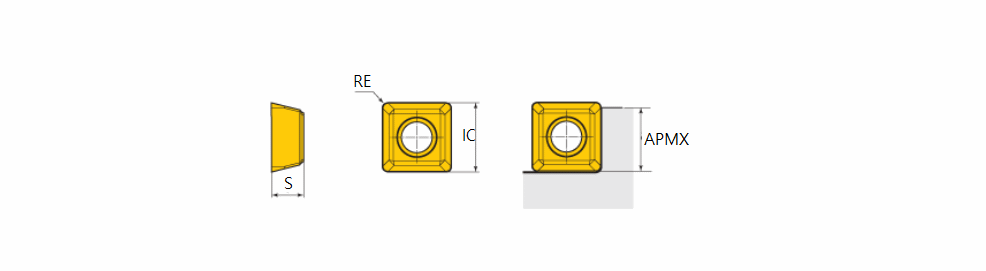

SEMT 13 PETR-M/ML : Positive square inserts with 4 helical cutting edges for 90° shoulder milling

Designation	CEDC	Insert	INSL	S	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SEMT 1304 PETR-M	4~	CQ-SE13 ~	13.68	4.76	11.00	13.00~	3.30	8.80	0.180	0.090	M8 ~	S ~	71DD68D829217 ~	U50 ~	M/ML ~	8525B ~	IS$$86504196042420 ~	SEMT 13 ~	0~	6345348		8		TT8020 TT8080 TT8525B TT7080 TT9030 TT9080 TT6080 TT2510
SEMT 1304 PETR-ML	4~	CQ-SE13 ~	13.68	4.76	11.00	13.00~	3.30	8.80	0.140	0.070	M7.5 ~	S ~	71DD68D829217 ~	U50 ~	M/ML ~	TT8080~	IS$$86504196042420 ~	SEMT 13 ~	0~	5615398		2		TT8080 TT9080
