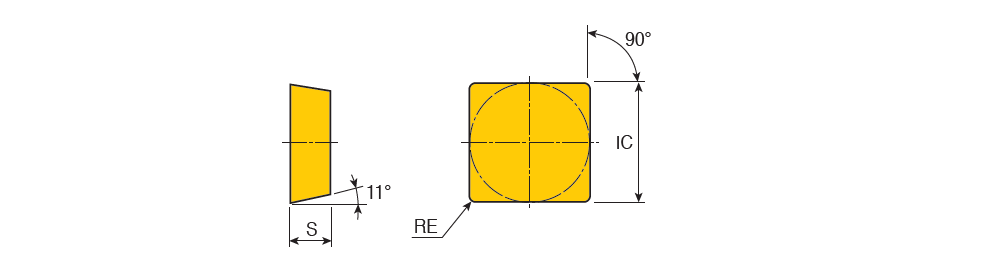

SPGN : Positive Square inserts without chip formers for short chipped materials

Designation	IC	S	RE	S1	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SPGN 090304	9.52	3.18	0.40	9.00~	9.52~	90~	11.00~	0.70	3.50	0.08	0.20	4~	P ~	~	S ~	71DD68D829217 ~	Uncoated ~	K10 ~	3~	ISO$SP0903043NA$$04 ~	321 ~	SPG ~	Y ~	9 ~	5500938	1	K10
SPGN 090308	9.52	3.18	0.80	9.00~	9.52~	90~	11.00~	0.70	3.50	0.10	0.25	4~	P ~	~	S ~	71DD68D829217 ~	Uncoated ~	K10 ~	3~	ISO$SP0903083NA$$08 ~	322 ~	SPG ~	Y ~	9 ~	5500939	1	K10
SPGN 120304	12.70	3.18	0.40	12.00~	12.70~	90~	11.00~	1.00	5.00	0.08	0.20	4~	P ~	~	S ~	71DD68D829217 ~	CVD ~	K10 ~	3~	ISO$SP1203043NA$$04 ~	421 ~	SPG ~	Y ~	12 ~	5580745	3	P20 K10 TT7005
SPGN 120308	12.70	3.18	0.80	12.00~	12.70~	90~	11.00~	1.00	5.00	0.10	0.25	4~	P ~	~	S ~	71DD68D829217 ~	CVD ~	8115B ~	3~	ISO$SP1203083NA$$08 ~	422 ~	SPG ~	Y ~	12 ~	6212593	5	P30 P20 TT8125B TT8115B K10
SPGN 120408	12.70	4.76	0.80	12.00~	12.70~	90~	11.00~	1.00	5.00	0.10	0.25	4~	P ~	~	S ~	71DD68D829217 ~	Uncoated ~	K10 ~	3~	ISO$SP1204083NA$$08 ~	432 ~	SPG ~	Y ~	12 ~	5500950	1	K10
SPGN 120416	12.70	4.76	1.60	12.00~	12.70~	90~	11.00~	1.00	5.00	0.18	0.33	4~	P ~	~	S ~	71DD68D829217 ~	Uncoated ~	K10 ~	3~	ISO$SP1204163NA$$16 ~	434 ~	SPG ~	Y ~	12 ~	5500951	1	K10
SPGN 150404	15.88	4.76	0.40	15.00~	15.88~	90~	11.00~	1.50	7.00	0.08	0.20	4~	P ~	~	S ~	71DD68D829217 ~	CVD ~	8115B ~	3~	ISO$SP1504043NA$$04 ~	531 ~	SPG ~	Y ~	15 ~	6212580	3	P20 TT8115B K10
SPGN 150408	15.88	4.76	0.80	15.00~	15.88~	90~	11.00~	1.50	7.00	0.10	0.25	4~	P ~	~	S ~	71DD68D829217 ~	Uncoated ~	P20 ~	3~	ISO$SP1504083NA$$08 ~	532 ~	SPG ~	Y ~	15 ~	5501948	1	P20
SPGN 190404	19.05	4.76	0.40	19.00~	19.05~	90~	11.00~	1.50	9.00	0.08	0.20	4~	P ~	~	S ~	71DD68D829217 ~	Uncoated ~	P20 ~	3~	ISO$SP1904043NA$$04 ~	631 ~	SPG ~	Y ~	19 ~	5501950	1	P20
SPGN 190408	19.05	4.76	0.80	19.00~	19.05~	90~	11.00~	1.50	9.00	0.10	0.25	4~	P ~	~	S ~	71DD68D829217 ~	Uncoated ~	K10 ~	3~	ISO$SP1904083NA$$08 ~	632 ~	SPG ~	Y ~	19 ~	5501951	2	P20 K10
