TaeguTec Cutting Tools - Metal Working Tools - Turning -

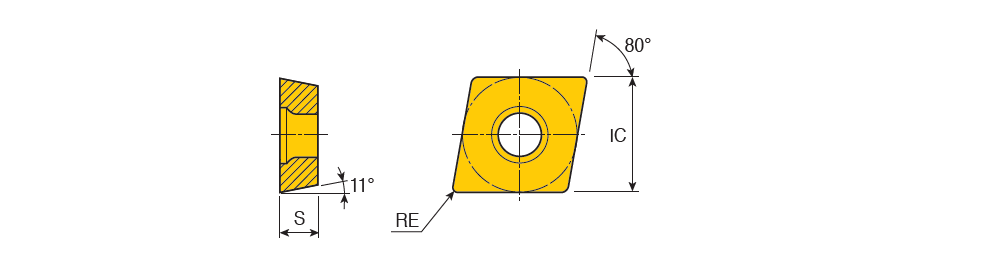

CPMT-FG : Positive 80 Rhombic inserts for finish to medium light applications of steels & stainless steels with 11° clearance angle & excellent chip control

Designation	IC	S	RE	D1	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CPMT 080204 FG	7.94	2.38	0.40	3.40~	7.60~	FG ~	80~	11.00~	0.40	1.50	0.07	0.20	2~	~	U ~	C ~	71DD68D301C30 ~	Cermet ~	8125B ~	3~	ISO$CP0802043NB$$04 ~	2.51.5 ~	CPMT ~	Y ~	8 ~	6238597	3	TT5100 TT8125B CT3000
CPMT 080208 FG	7.94	2.38	0.80	3.40~	7.60~	FG ~	80~	11.00~	0.60	1.50	0.10	0.25	2~	~	U ~	C ~	71DD68D301C30 ~	Cermet ~	8125B ~	3~	ISO$CP0802083NB$$08 ~	2.51.5 ~	CPMT ~	Y ~	8 ~	6212253	2	TT8125B CT3000
CPMT 090304 FG	9.52	3.18	0.40	4.40~	9.50~	FG ~	80~	11.00~	0.40	2.00	0.07	0.20	2~	~	U ~	C ~	71DD68D301C30 ~	Cermet ~	8125B ~	3~	ISO$CP0903043NB$$04 ~	321 FG ~	CPMT ~	Y ~	9 ~	6212539	3	TT5100 TT8125B CT3000
CPMT 090308 FG	9.52	3.18	0.80	4.40~	9.50~	FG ~	80~	11.00~	0.60	2.00	0.10	0.25	2~	~	~	C ~	71DD68D301C30 ~	Cermet ~	8125B ~	3~	ISO$CP0903083NB$$08 ~	322 FG ~	CPMT ~	Y ~	9 ~	6212786	3	TT5100 TT8125B CT3000
