TaeguTec Cutting Tools - Metal Working Tools - Turning -

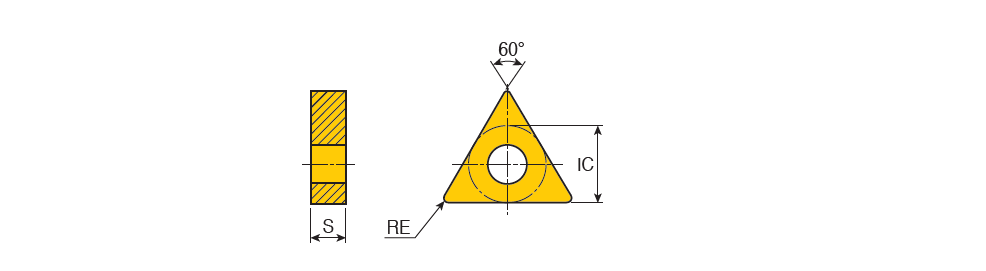

TNMG-PC (RHINO) : Negative Triangular RHINOTURN inserts for medium to semi- finishing applications of steels & automotive parts

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 130404 PC	7.94	4.76	0.40	PC ~	60~	0.00~	0.40	3.00	0.10	0.30	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$TN1304042NB$$04 ~	2.531 ~	TNMG ~	Y ~	13 ~	6212473	4	TT9080 TT5100 TT8125B TT8115B
TNMG 130408 PC	7.94	4.76	0.80	PC ~	60~	0.00~	0.50	3.00	0.15	0.40	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$TN1304082NB$$08 ~	2.532 ~	TNMG ~	Y ~	13 ~	6240082	4	TT8135B TT9080 TT8125B TT8115B
TNMG 130412 PC	7.94	4.76	1.20	PC ~	60~	0.00~	0.60	3.00	0.18	0.50	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$TN1304122NB$$12 ~	2.533 ~	TNMG ~	Y ~	13 ~	6212288	2	TT5100 TT8115B
