TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

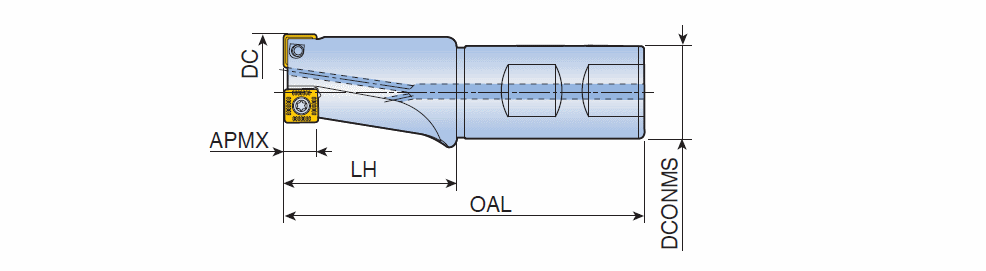

TDM-06 : Drilling & milling end mills with XOMT 06 inserts

Designation	Tool sty	DC	CICT	LH	DCONMS	OAL	APMX	Cd	S1	Shank	e		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID		AE	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
TDM 112 W16-06	ENDMILL ~	12.00	1	20.00	16.00	80.00	5.60	12.00	6.00~	W ~	3 ~	0.09	90.0~	~	~	RC ~	CQ-XO06 ~	71E01A05D27A8 ~	XOMT 060204	O ~	0.0~	ZYL ~	10 ~	IS$$76944682683351 ~	32.00~	1~	1~	3101259
TDM 216 W20-06	ENDMILL ~	16.00	2	25.00	20.00	90.00	5.60	16.00	6.00~	W ~	~	0.17	90.0~	~	~	RC ~	CQ-XO06 ~	71E01A05D27A8 ~	XOMT 060204	O ~	0.0~	ZYL ~	10 ~	IS$$76944682683351 ~	40.00~	2~	2~	3101398
TDM 218 W20-06	ENDMILL ~	18.00	2	25.00	20.00	90.00	5.60	16.00	6.00~	W ~	~	0.17	90.0~	~	~	RC ~	CQ-XO06 ~	71E01A05D27A8 ~	XOMT 060204	O ~	0.0~	ZYL ~	10 ~	IS$$76944682683351 ~	40.00~	2~	2~	3101260
TDM 220 W25-06	ENDMILL ~	20.00	2	40.00	25.00	100.00	5.60	20.00	6.00~	W ~	~	0.27	90.0~	~	~	RC ~	CQ-XO06 ~	71E01A05D27A8 ~	XOMT 060204	O ~	0.0~	ZYL ~	10 ~	IS$$76944682683351 ~	44.00~	2~	2~	3101399
TDM 222 W25-06	ENDMILL ~	22.00	2	47.00	25.00	110.00	5.60	25.00	6.00~	W ~	~	0.44	90.0~	~	~	RC ~	CQ-XO06 ~	71E01A05D27A8 ~	XOMT 060204	O ~	0.0~	ZYL ~	10 ~	IS$$76944682683351 ~	54.00~	2~	2~	3101400
