Turning
Main Application

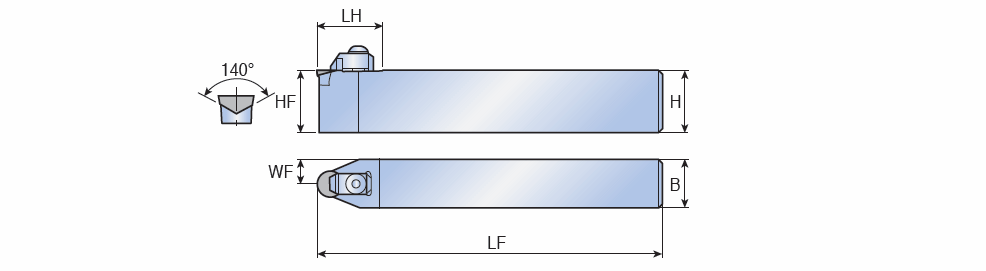

CRDCN-140 : Top clamp holders with 45° approach angle for positive Round CBN inserts of V bottom shape & 7° clearance angle


  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC GICATGIREMgiicGICODE
  CRDCN 2525 M06-140 25.025.025.0150.0028.012.506.35~3.18~0~90.0~Top Clamp ~SQUARE ~ ~71E01A0E85121 ~RCGX 060300 FT ~6341260 0
  CRDCN 3225 P06-140 32.032.025.0170.0028.012.506.35~3.18~0~90.0~Top Clamp ~SQUARE ~ ~71E01A0E85121 ~RCGX 060600 U1 ~3602603 0
  CRDCN 3225 P09-140 32.032.025.0170.0030.012.509.52~3.18~0~90.0~Top Clamp ~SQUARE ~ ~71E01A0E85121 ~RCGX 090300 FT IS$$48802470454738 ~3602604 0
  CRDCN 3225 P12-140 32.032.025.0170.0032.012.5012.70~4.76~0~90.0~Top Clamp ~SQUARE ~ ~71E01A0E85121 ~RCGX 120400 FT IS$$25957471533000 ~3602605 0
